using kirchoffs law, determine the potential differences between the terminals of the three resistors

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

using kirchoffs law, determine the potential differences between the terminals of the three resistors

Post by answerhappygod »

using kirchoffs law, determine the potential differences between the terminals of the three resistors
Using Kirchoffs Law Determine The Potential Differences Between The Terminals Of The Three Resistors 1
Using Kirchoffs Law Determine The Potential Differences Between The Terminals Of The Three Resistors 1 (12.09 KiB) Viewed 13 times
Using Kirchoffs Law Determine The Potential Differences Between The Terminals Of The Three Resistors 2
Using Kirchoffs Law Determine The Potential Differences Between The Terminals Of The Three Resistors 2 (7.98 KiB) Viewed 13 times
Using Kirchoffs Law Determine The Potential Differences Between The Terminals Of The Three Resistors 3
Using Kirchoffs Law Determine The Potential Differences Between The Terminals Of The Three Resistors 3 (8.7 KiB) Viewed 13 times

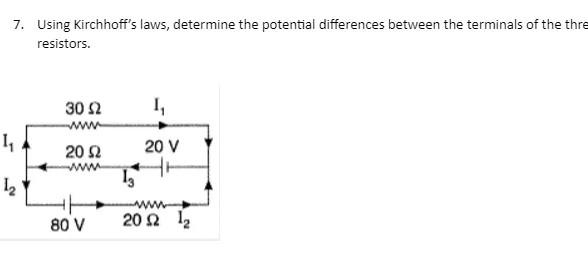

7. Using Kirchhoff's laws, determine the potential differences between the terminals of the thre resistors. 1₁ 12 30 Ω 20 Ω www 80 V I₁ 20 V 2012 12
A D E 6. Determine the current through the three resistors. 80 V 40 92 www 40 V 2002 www ww 10 (2 Ω B C

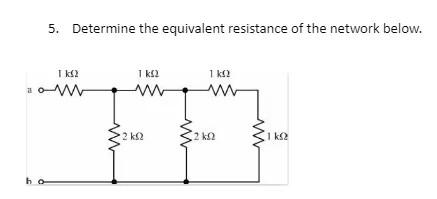

ha 5. Determine the equivalent resistance of the network below. ΤΙΚΩΣ 1 ΚΩΣ ΣΚΩ ΙΚΩ www ΣΚΩ Μ ΤΩ
