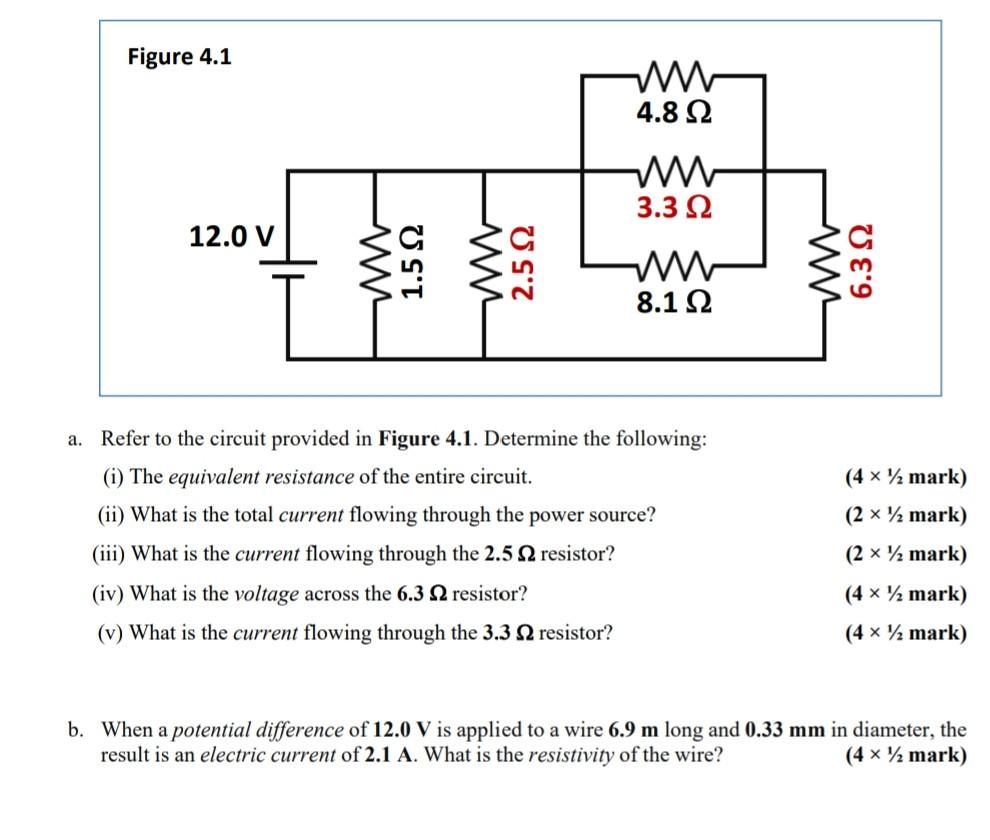

Figure 4.1 12.0 V ww 1.5 Ω ww 2.5 Ω www 4.8 Ω www 3.3 Ω 8.1 Ω a. Refer to the circuit provided in Figure 4.1. Determine
