A non-viscous fluid with density p= 850 kg/m³ is flowing through a circular pipe shown in the figure below. The radii of

[answerhappygod]

A Non Viscous Fluid With Density P 850 Kg M Is Flowing Through A Circular Pipe Shown In The Figure Below The Radii Of 1 (52.36 KiB) Viewed 13 times

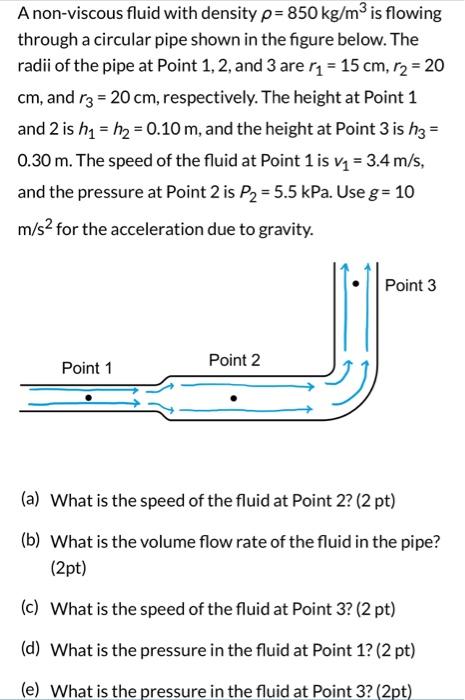

A non-viscous fluid with density p= 850 kg/m³ is flowing through a circular pipe shown in the figure below. The radii of the pipe at Point 1, 2, and 3 are r₁ = 15 cm, r₂ = 20 cm, and r3 = 20 cm, respectively. The height at Point 1 and 2 is h₁ = h₂ = 0.10 m, and the height at Point 3 is h3 = 0.30 m. The speed of the fluid at Point 1 is v₁ = 3.4 m/s, and the pressure at Point 2 is P₂ = 5.5 kPa. Use g = 10 m/s² for the acceleration due to gravity. Point 1 Point 2 Point 3 (a) What is the speed of the fluid at Point 2? (2 pt) (b) What is the volume flow rate of the fluid in the pipe? (2pt) (c) What is the speed of the fluid at Point 3? (2 pt) (d) What is the pressure in the fluid at Point 1? (2 pt) (e) What is the pressure in the fluid at Point 3? (2pt)
