2.8 Figure 2 illustrates the radiation pattern of an antenna with each circle represents 1 dB. The center point has a va

Post by answerhappygod »

2 8 Figure 2 Illustrates The Radiation Pattern Of An Antenna With Each Circle Represents 1 Db The Center Point Has A Va 1
2 8 Figure 2 Illustrates The Radiation Pattern Of An Antenna With Each Circle Represents 1 Db The Center Point Has A Va 1 (77.14 KiB) Viewed 8 times

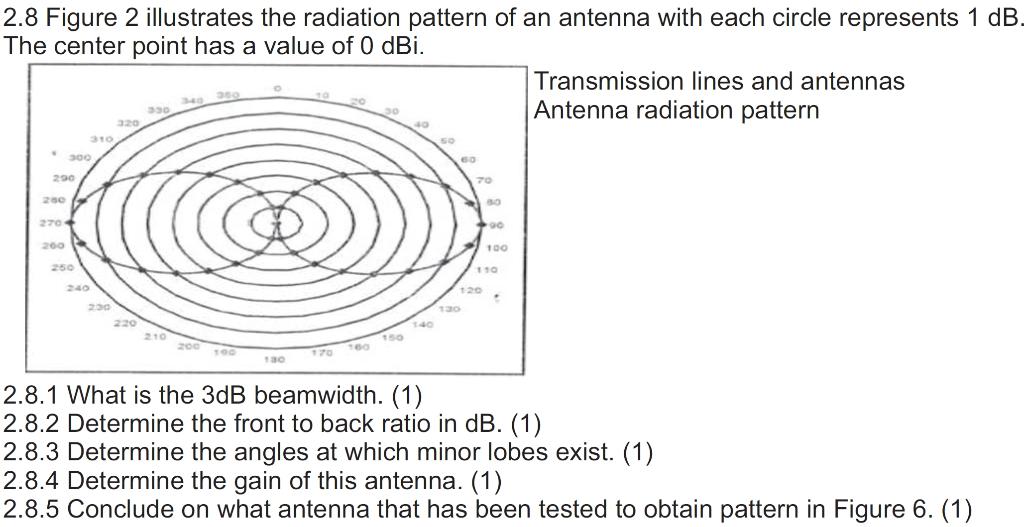

2.8 Figure 2 illustrates the radiation pattern of an antenna with each circle represents 1 dB. The center point has a value of 0 dBi. 290 280 300 2704 200 250 310. 320 230 330 200 170 160 40 130 70 80 +90 100 110 Transmission lines and antennas Antenna radiation pattern 2.8.1 What is the 3dB beamwidth. (1) 2.8.2 Determine the front to back ratio in dB. (1) 2.8.3 Determine the angles at which minor lobes exist. (1) 2.8.4 Determine the gain of this antenna. (1) 2.8.5 Conclude on what antenna that has been tested to obtain pattern in Figure 6. (1)
