Consider the LTI system shown in Fig. Q2. x(t) g(t) h(t) ii) h(t) h(t) y(t) Fig. Q2 The impulse response of each sub sys

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Consider the LTI system shown in Fig. Q2. x(t) g(t) h(t) ii) h(t) h(t) y(t) Fig. Q2 The impulse response of each sub sys

Post by answerhappygod »

Consider The Lti System Shown In Fig Q2 X T G T H T Ii H T H T Y T Fig Q2 The Impulse Response Of Each Sub Sys 1
Consider The Lti System Shown In Fig Q2 X T G T H T Ii H T H T Y T Fig Q2 The Impulse Response Of Each Sub Sys 1 (171.73 KiB) Viewed 10 times

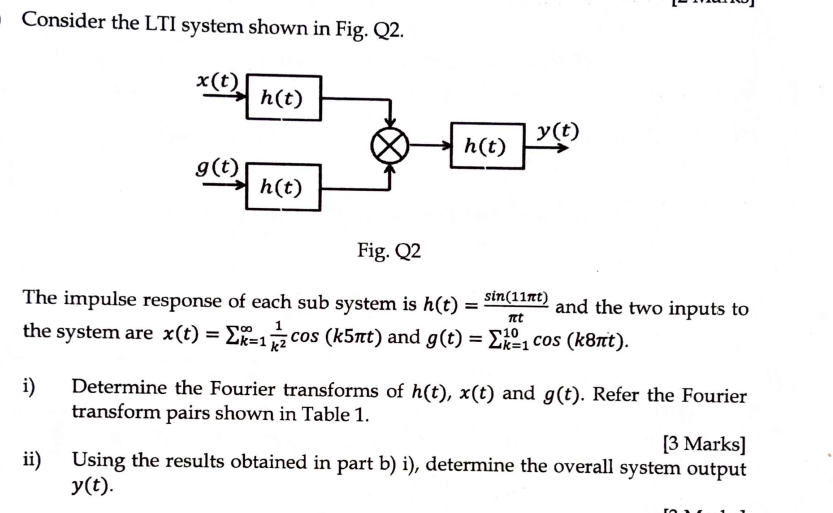

Consider the LTI system shown in Fig. Q2. x(t) g(t) h(t) ii) h(t) h(t) y(t) Fig. Q2 The impulse response of each sub system is h(t) sin(11nt) = the system are x(t) = -1cos (k5nt) and g(t) = k₁cos (k8nt). nt and the two inputs to i) Determine the Fourier transforms of h(t), x(t) and g(t). Refer the Fourier transform pairs shown in Table 1. [3 Marks] Using the results obtained in part b) i), determine the overall system output y(t).
