Q3. Coupler Curve and Position Analysis (6 points) We need a point on a fourbar mechanism to follow the path circled in

[answerhappygod]

Q3 Coupler Curve And Position Analysis 6 Points We Need A Point On A Fourbar Mechanism To Follow The Path Circled In 1 (46.38 KiB) Viewed 17 times

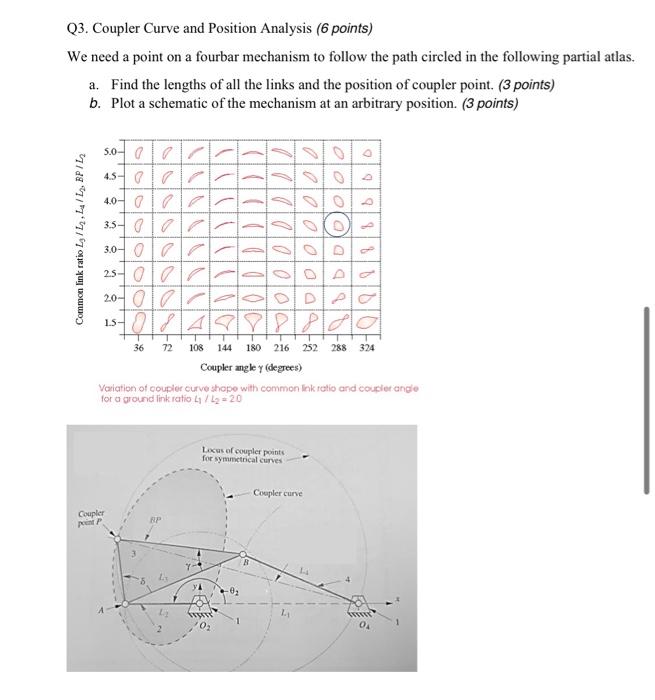

Q3. Coupler Curve and Position Analysis (6 points) We need a point on a fourbar mechanism to follow the path circled in the following partial atlas. a. Find the lengths of all the links and the position of coupler point. (3 points) b. Plot a schematic of the mechanism at an arbitrary position. (3 points) Common link ratio L/L₂, L/L₂ BPIL 5.0 4.5- 4.0-r 3.5- 3.0- 25-000 20-0- 15-848 72 Coupler point P 36 14 188 108 144 180 216 252 288 Coupler angley (degrees) Variation of coupler curve shape with common Ink ratio and coupler angle for a ground link ratio L₁/L₂-20 Locus of coupler points for symmetrical curves yk 01010 70₂ -0₂ 0000 Pas Coupler curve DDD00000 9 998800 324 wwwwww 0₁
