ed ces A circular plate of 120 mm radius is supported by two bearings A and B as shown. The plate rotates about the rod

[answerhappygod]

Ed Ces A Circular Plate Of 120 Mm Radius Is Supported By Two Bearings A And B As Shown The Plate Rotates About The Rod 1 (23.51 KiB) Viewed 63 times

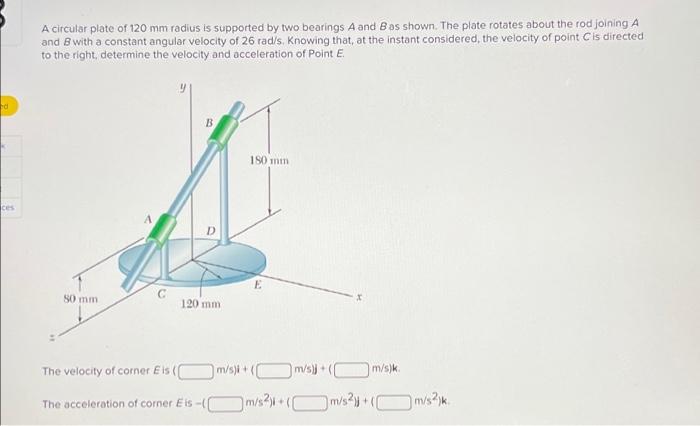

ed ces A circular plate of 120 mm radius is supported by two bearings A and B as shown. The plate rotates about the rod joining A and 8 with a constant angular velocity of 26 rad/s. Knowing that, at the instant considered, the velocity of point C is directed to the right, determine the velocity and acceleration of Point E. 80 mm The velocity of corner Eis ( B D 120 mm The acceleration of corner Eis-([ 180 mm m/s)i + (m/s)+( m/s2)+( m/s)k. m/s2)+( m/s2)k.
