The assembly shown consists of two rods and a rectangular plate BCDE that are welded together. The assembly rotates abou

Post by answerhappygod »

The Assembly Shown Consists Of Two Rods And A Rectangular Plate Bcde That Are Welded Together The Assembly Rotates Abou 1
The Assembly Shown Consists Of Two Rods And A Rectangular Plate Bcde That Are Welded Together The Assembly Rotates Abou 1 (22.87 KiB) Viewed 16 times

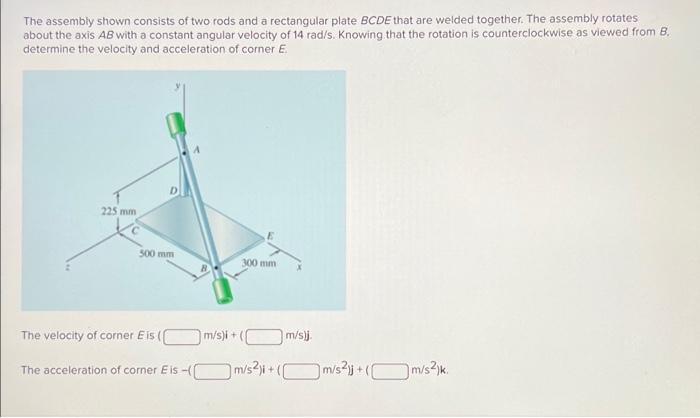

The assembly shown consists of two rods and a rectangular plate BCDE that are welded together. The assembly rotates about the axis AB with a constant angular velocity of 14 rad/s. Knowing that the rotation is counterclockwise as viewed from B. determine the velocity and acceleration of corner E. 225 mm 500 mm The velocity of corner Eis ( The acceleration of corner Eis -(1 300 mm m/s)i + ( m/s)j. m/s²)i + ( m/s²)j + (m/s²)k.
