A cantilever beam built up from two channel shapes, each C 200 X 17.1 and of length L, supports an inclined load P at it

[answerhappygod]

A Cantilever Beam Built Up From Two Channel Shapes Each C 200 X 17 1 And Of Length L Supports An Inclined Load P At It 1 (50.38 KiB) Viewed 13 times

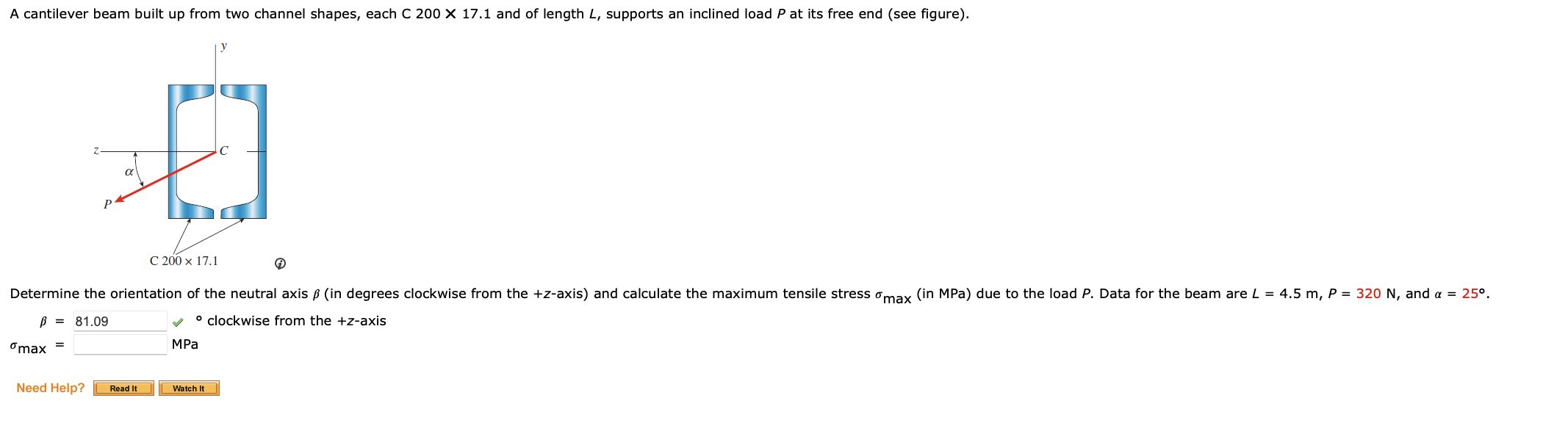

A cantilever beam built up from two channel shapes, each C 200 X 17.1 and of length L, supports an inclined load P at its free end (see figure). Z P α C 200 x 17.1 Need Help? Read It Determine the orientation of the neutral axis ß (in degrees clockwise from the +z-axis) and calculate the maximum tensile stress max (in MPa) due to the load P. Data for the beam are L = 4.5 m, P = 320 N, and a = 25°. В = 81.09 ✔ ° clockwise from the +z-axis "max MPa 4 Watch It
