For the system shown in the image, there are 4 forces acting on points A, B, C, and O. [30 points] Determine the resulta

[answerhappygod]

For The System Shown In The Image There Are 4 Forces Acting On Points A B C And O 30 Points Determine The Resulta 1 (37.07 KiB) Viewed 10 times

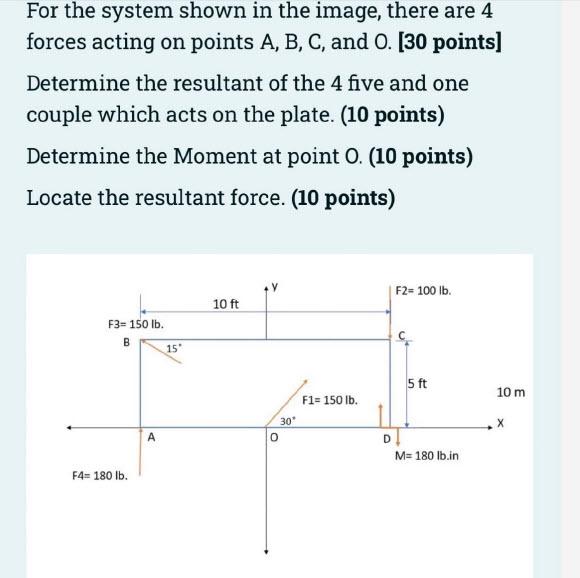

For the system shown in the image, there are 4 forces acting on points A, B, C, and O. [30 points] Determine the resultant of the 4 five and one couple which acts on the plate. (10 points) Determine the Moment at point O. (10 points) Locate the resultant force. (10 points) F3= 150 lb. B F4= 180 lb. 15" 10 ft 0 30° F1= 150 lb. |F2= 100 lb. D 5 ft M= 180 lb.in 10 m X
