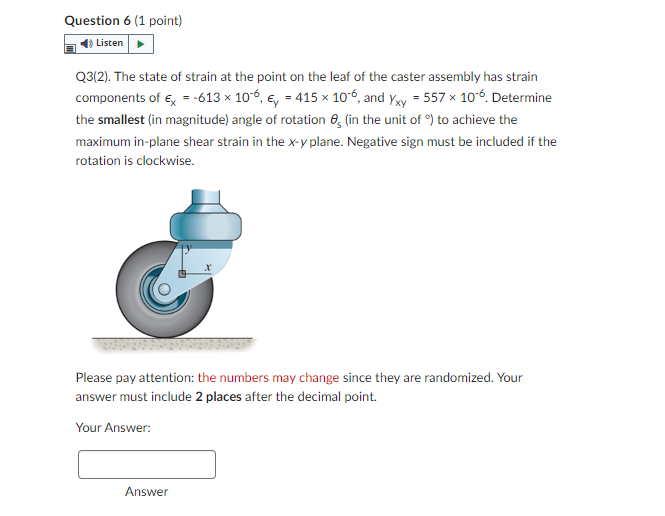

Question 6 1 Point Listen Q3 2 The State Of Strain At The Point On The Leaf Of The Caster Assembly Has Strain Compon 1 (58.92 KiB) Viewed 8 times
I need answer ASAP!!! You might have seen a similar problem already on answers. DONOT copy it thinking it is right as it contains differentvalues and dimensions.Also, I need final answer in theDegrees!!! Question 6 (1 point) Listen Q3(2). The state of strain at the point on the leaf of the caster assembly has strain components of Ex = -613 × 10-6, €y = 415 × 10-6, and Yxy = 557 x 10-6. Determine the smallest (in magnitude) angle of rotation 8, (in the unit of º) to achieve the maximum in-plane shear strain in the x-y plane. Negative sign must be included if the rotation is clockwise. Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. Your Answer: Answer
