Question 2 1 Point Listen X Q1 2 The State Of Plane Strain At A Point Has Components Of X 3 6 10 Y 2 9 X 1 1 (38.57 KiB) Viewed 10 times

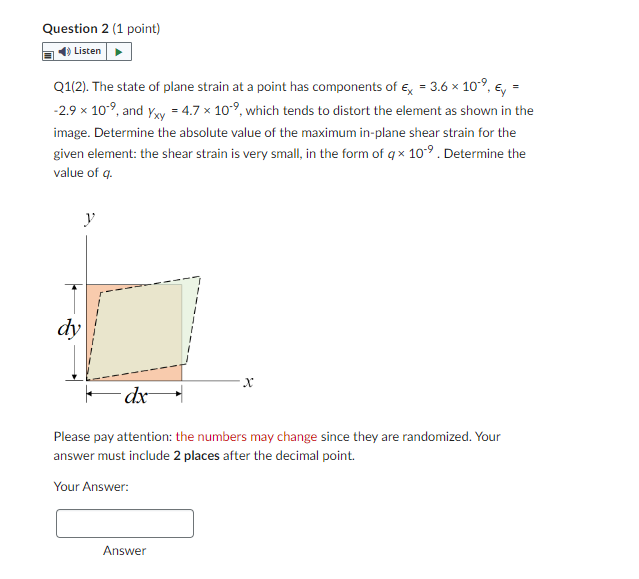

I need answer ASAP!!! You might have seen a similar problem already on answers. DO NOT copyit thinking it is right as it contains different values anddimensions.Also, I need final answer in the form of q x109 !!! Question 2 (1 point) Listen X Q1(2). The state of plane strain at a point has components of x = 3.6 × 10-⁹, y = -2.9 x 10-⁹, and Yxy = 4.7 x 10⁹, which tends to distort the element as shown in the image. Determine the absolute value of the maximum in-plane shear strain for the given element: the shear strain is very small, in the form of qx 10⁹. Determine the value of q. y dy X dx Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. Your Answer: Answer
