Question 1 1 Point Listen Q1 1 The State Of Plane Strain At A Point Has Components Of Ex 3 9 X 10 Ey 2 9 1 1 (37.17 KiB) Viewed 10 times

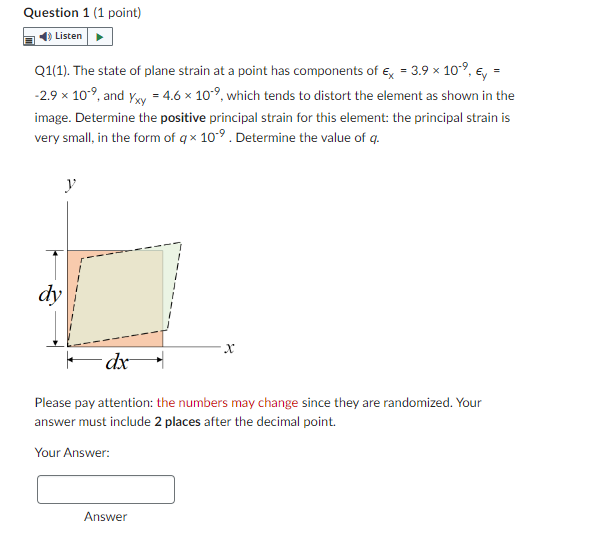

I need answer ASAP!!! You might have seen a similar problem already on answers. DO NOT copyit thinking it is right as it contains different values anddimensions.Also, I need final answer in the form of q x109 !!! Question 1 (1 point) Listen = Q1(1). The state of plane strain at a point has components of Ex = 3.9 x 10¹⁹, Ey -2.9 × 10-⁹, and Yxy = 4.6 x 109, which tends to distort the element as shown in the image. Determine the positive principal strain for this element: the principal strain is very small, in the form of qx 109. Determine the value of q. y dy x dx Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. Your Answer: Answer
