Question 12 (1 point) Listen Q5. The bent solid rod with a diameter of 2.3 in. is fixed-support at point C. The lengths

[answerhappygod]

Question 12 1 Point Listen Q5 The Bent Solid Rod With A Diameter Of 2 3 In Is Fixed Support At Point C The Lengths 1 (70.31 KiB) Viewed 15 times

I need answer ASAP!!! You might have seen a similar problem already on answers. DONOT copy it thinking it is right as it contains differentvalues and dimensions.Also, I need final answer in degrees!!!

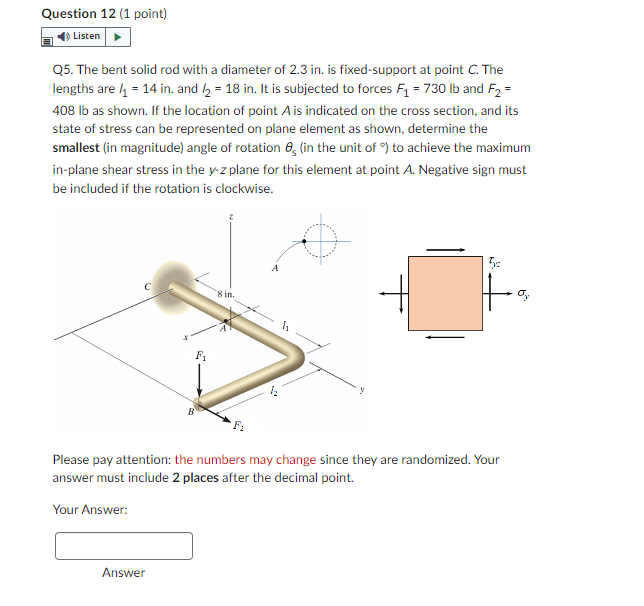

Question 12 (1 point) Listen Q5. The bent solid rod with a diameter of 2.3 in. is fixed-support at point C. The lengths are /₁ = 14 in. and 2 = 18 in. It is subjected to forces F₁ = 730 lb and F₂ = 408 lb as shown. If the location of point A is indicated on the cross section, and its state of stress can be represented on plane element as shown, determine the smallest (in magnitude) angle of rotation 8 (in the unit of °) to achieve the maximum in-plane shear stress in the y-z plane for this element at point A. Negative sign must be included if the rotation is clockwise. F₁ Answer B 8 in. F₂ A 1₂ 52 ta Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. Your Answer:
