Question 5 1 Point Listen Q2 3 The State Of Stress At A Point In A Member Is Shown On The Element With Ox 26 Mpa 1 (37.5 KiB) Viewed 9 times

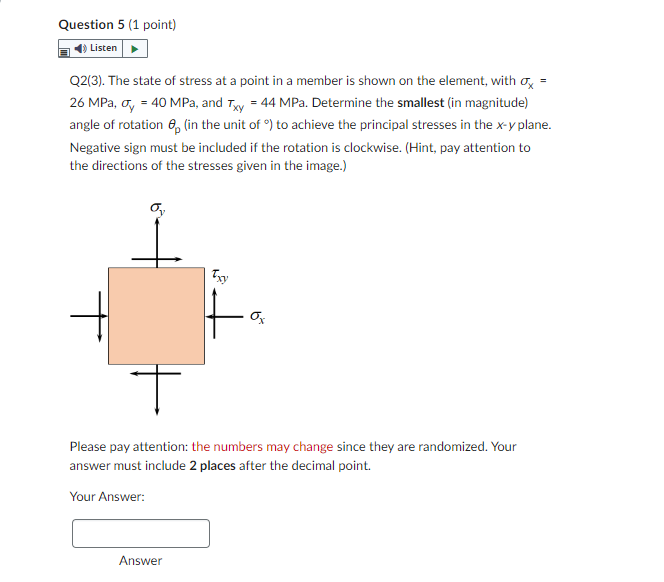

I need answer ASAP!!! You might have seen a similar problem already on answers. DO NOT copyit thinking it is right as it contains different values anddimensions.Also, I need final answer in degrees!!! Question 5 (1 point) Listen ► Q2(3). The state of stress at a point in a member is shown on the element, with ox 26 MPa, σy = 40 MPa, and Txy = 44 MPa. Determine the smallest (in magnitude) angle of rotation 8 (in the unit of °) to achieve the principal stresses in the x-y plane. Negative sign must be included if the rotation is clockwise. (Hint, pay attention to the directions of the stresses given in the image.) 0₂ Txy Answer ox T Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. Your Answer:
