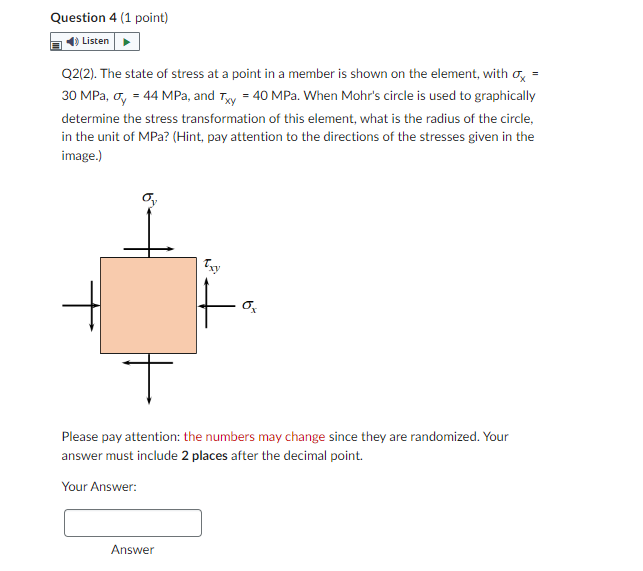

I need answer ASAP!!! You might have seen a similar problem already on answers. DO NOT copyit thinking it is right as it contains different values anddimensions.Also, I need final answer in MPa!!! Question 4 (1 point) ◄ Listen ► = Q2(2). The state of stress at a point in a member is shown on the element, with ox 30 MPa, σy = 44 MPa, and Txy = 40 MPa. When Mohr's circle is used to graphically determine the stress transformation of this element, what is the radius of the circle, in the unit of MPa? (Hint, pay attention to the directions of the stresses given in the image.) + ov 6² T Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. Your Answer: Answer
