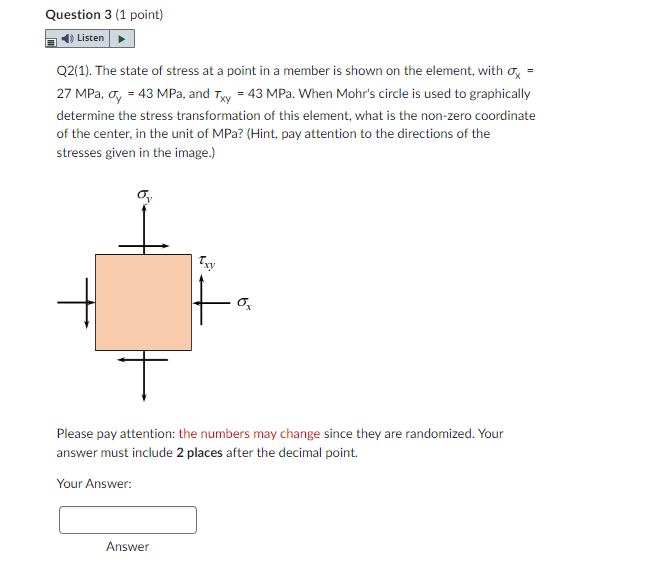

Question 3 (1 point) Listen Q2(1). The state of stress at a point in a member is shown on the element, with ox 27 MPa, σy = 43 MPa, and Txy = 43 MPa. When Mohr's circle is used to graphically determine the stress transformation of this element, what is the non-zero coordinate of the center, in the unit of MPa? (Hint, pay attention to the directions of the stresses given in the image.) 十 Txy It Answer ox T Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. Your Answer:
