Problem 3 A simply supported beam with unit thickness (in the direction into the paper), which is subjected to uniform p

[answerhappygod]

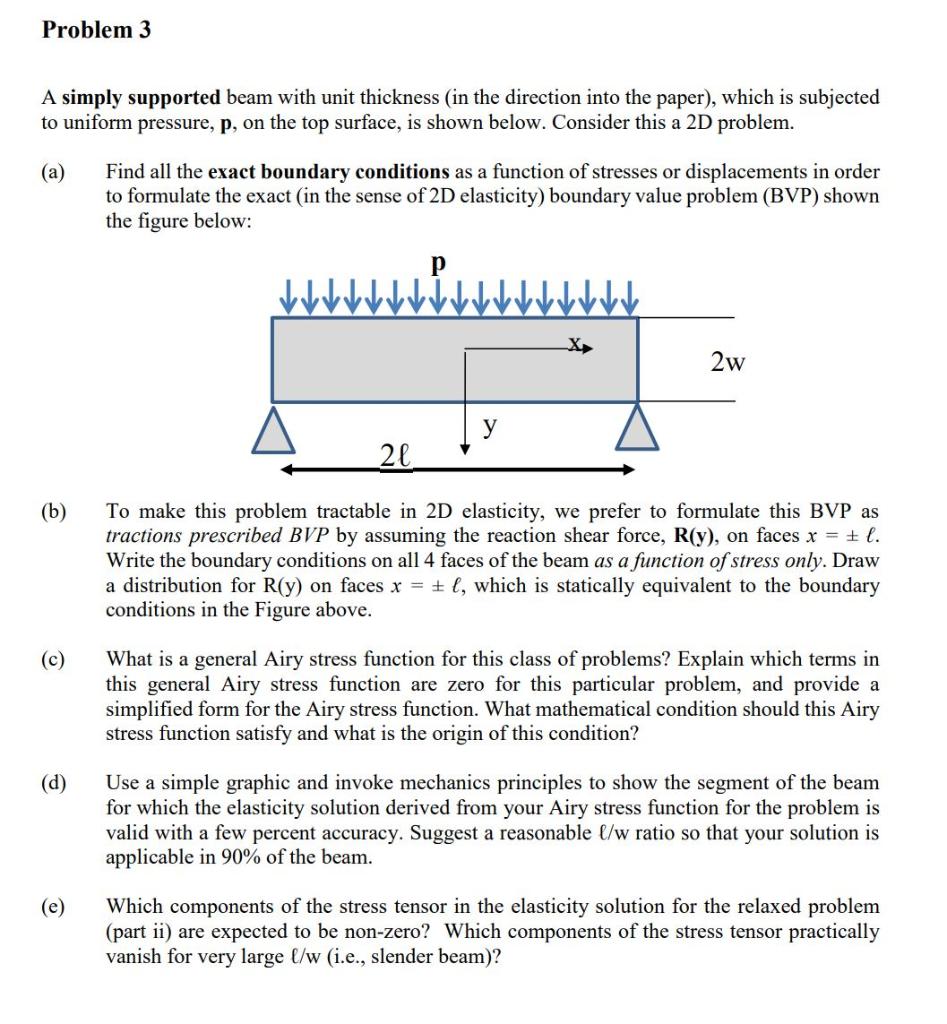

Problem 3 A Simply Supported Beam With Unit Thickness In The Direction Into The Paper Which Is Subjected To Uniform P 1 (139.09 KiB) Viewed 17 times

Problem 3 A simply supported beam with unit thickness (in the direction into the paper), which is subjected to uniform pressure, p, on the top surface, is shown below. Consider this a 2D problem. (a) (b) (c) (d) (e) Find all the exact boundary conditions as a function of stresses or displacements in order to formulate the exact (in the sense of 2D elasticity) boundary value problem (BVP) shown the figure below: Р y X▶ 2w 20 To make this problem tractable in 2D elasticity, we prefer to formulate this BVP as tractions prescribed BVP by assuming the reaction shear force, R(y), on faces x = ± l. Write the boundary conditions on all 4 faces of the beam as a function of stress only. Draw a distribution for R(y) on faces x = ±l, which is statically equivalent to the boundary conditions in the Figure above. What is a general Airy stress function for this class of problems? Explain which terms in this general Airy stress function are zero for this particular problem, and provide a simplified form for the Airy stress function. What mathematical condition should this Airy stress function satisfy and what is the origin of this condition? Use a simple graphic and invoke mechanics principles to show the segment of the beam for which the elasticity solution derived from your Airy stress function for the problem is valid with a few percent accuracy. Suggest a reasonable l/w ratio so that your solution is applicable in 90% of the beam. Which components of the stress tensor in the elasticity solution for the relaxed problem (part ii) are expected to be non-zero? Which components of the stress tensor practically vanish for very large l/w (i.e., slender beam)?
