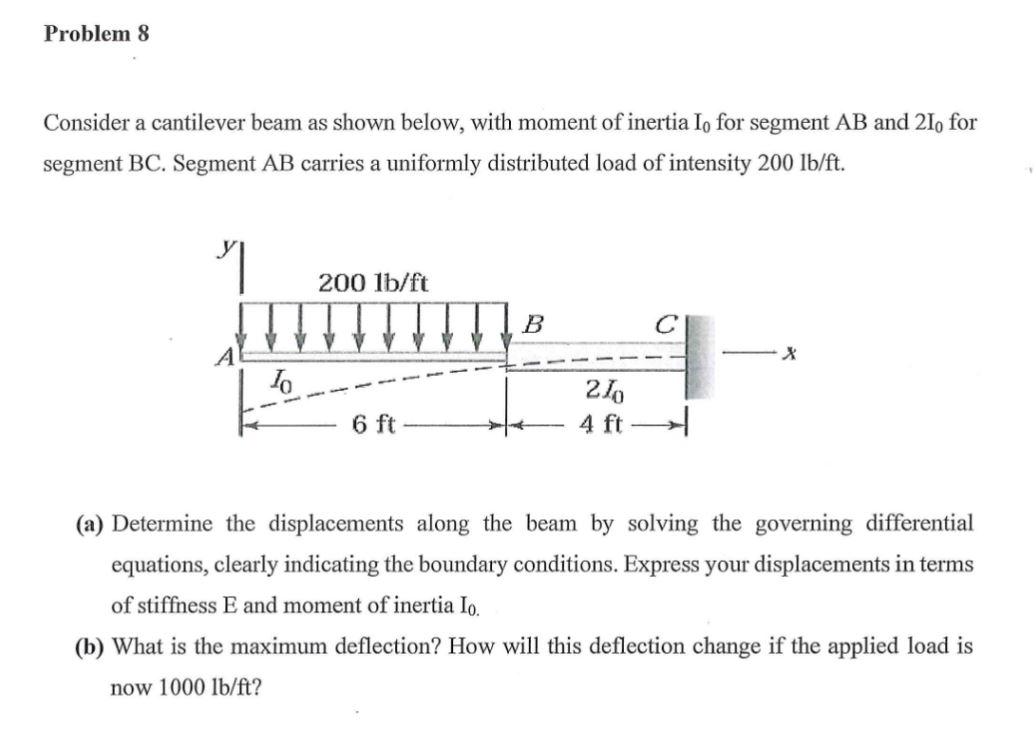

Problem 8 Consider a cantilever beam as shown below, with moment of inertia Io for segment AB and 210 for segment BC. Segment AB carries a uniformly distributed load of intensity 200 lb/ft. 7 To 200 lb/ft 6 ft B 210 4 ft C ✈ -X (a) Determine the displacements along the beam by solving the governing differential equations, clearly indicating the boundary conditions. Express your displacements in terms of stiffness E and moment of inertia Io. (b) What is the maximum deflection? How will this deflection change if the applied load is now 1000 lb/ft?
