You are given V₁ = 0.7 V, k=100 μA/V², L = 1 μm, W = 32 μm, and λ = 0 V¹. For RD = 2.5k and Rs = 1k, find the value of l

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

You are given V₁ = 0.7 V, k=100 μA/V², L = 1 μm, W = 32 μm, and λ = 0 V¹. For RD = 2.5k and Rs = 1k, find the value of l

Post by answerhappygod »

1
1 (86.2 KiB) Viewed 10 times

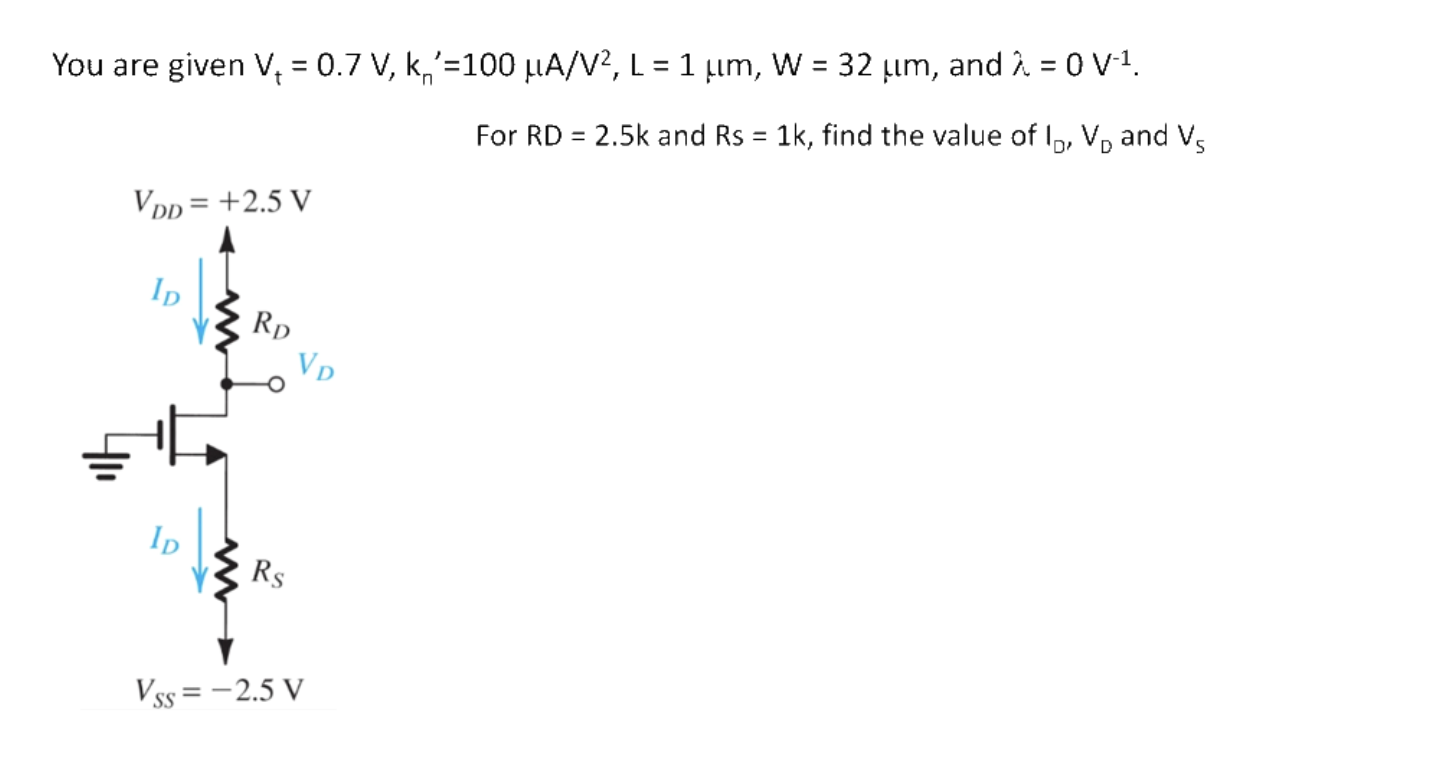

You are given V₁ = 0.7 V, k=100 μA/V², L = 1 μm, W = 32 μm, and λ = 0 V¹. For RD = 2.5k and Rs = 1k, find the value of l, V₂ and Vs VDD= +2.5 V ID ID RD Rs VD Vss=-2.5 V
