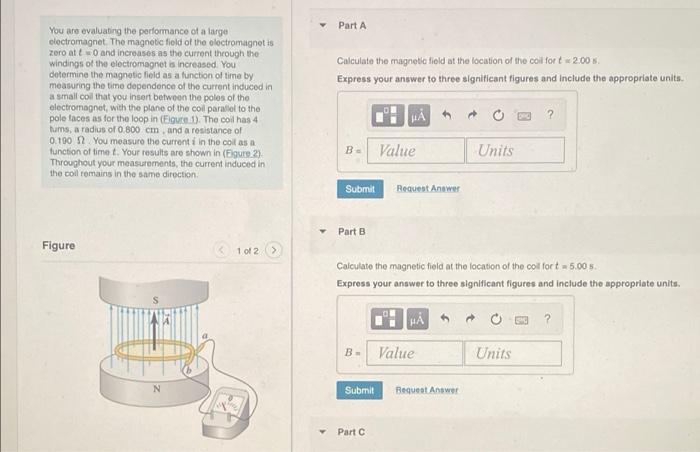

You are evaluating the performance of a large electromagnet. The magnetic field of the electromagnet is zero at t= 0 and increases as the current through the windings of the electromagnet is increased. You determine the magnetic field as a function of time by measuring the time dependence of the current induced in a small coll that you insert between the poles of the electromagnet, with the plane of the coil parallel to the pole faces as for the loop in (Figure 1). The coil has 4 tums, a radius of 0.800 cm, and a resistance of 0.190 You measure the current i in the coil as a function of time t. Your results are shown in (Figure 2) Throughout your measurements, the current induced in the coll remains in the same direction. Figure N 1 of 2 Part A Calculate the magnetic field at the location of the coil for t = 2.00 s. Express your answer to three significant figures and include the appropriate units. B= Value Submit Part B B- HÅ Submit Part C Request Answer Calculate the magnetic field at the location of the coll for t = 5.00 5. Express your answer to three significant figures and include the appropriate units. HÅ Value Units Request Answer ? Units

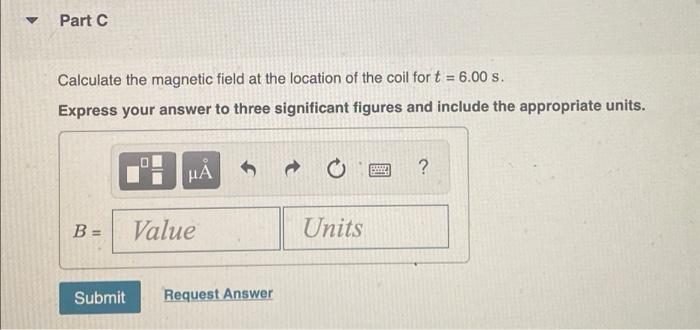

♥ Part C Calculate the magnetic field at the location of the coil for t = 6.00 s. Express your answer to three significant figures and include the appropriate units. B = μA Value Submit Request Answer Units B ?
