A stream of 2 kg/s of CH4 at 1.6 bar and and 140 K is compressed adiabatically to 50 bar and 400 K in a steady-state pro
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
A stream of 2 kg/s of CH4 at 1.6 bar and and 140 K is compressed adiabatically to 50 bar and 400 K in a steady-state pro

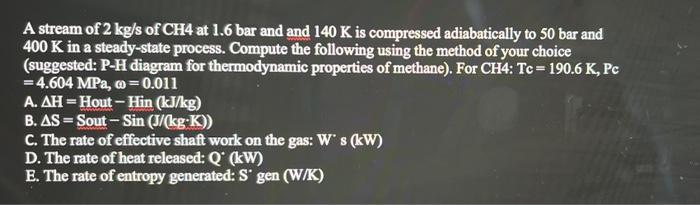

A stream of 2 kg/s of CH4 at 1.6 bar and and 140 K is compressed adiabatically to 50 bar and 400 K in a steady-state process. Compute the following using the method of your choice (suggested: P-H diagram for thermodynamic properties of methane). For CH4: Tc=190.6 K, Pc =4.604 MPa, = = 0.011 A. AH-Hout- Hin (kJ/kg) B. AS-Sout-Sin (J/(kg-K)) C. The rate of effective shaft work on the gas: W's (kW) D. The rate of heat released: Q (kW) E. The rate of entropy generated: S' gen (W/K)
