- On The Free Surface Of An Aluminum E 10600 Ksi V 0 35 Component The Strain Rosette Shown Was Used To Obtain The 1 (43.55 KiB) Viewed 17 times
Determine the shear stress at the point.
Determine the normal stress that acts along an axis rotatedat θ=θ= 65° counterclockwise from thepositive x-axis.
5 parts Thank you

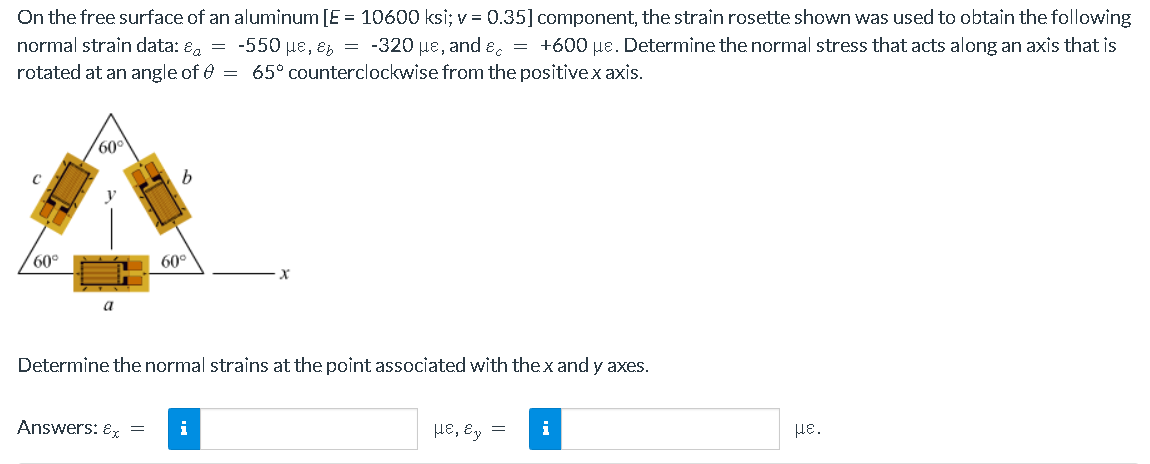

On the free surface of an aluminum [E = 10600 ksi; v = 0.35] component, the strain rosette shown was used to obtain the following normal strain data: a = -550 μe, € = -320 μe, and ec = +600 μe. Determine the normal stress that acts along an axis that is rotated at an angle of = 65° counterclockwise from the positive x axis. с 60° 60° a b 60° X Determine the normal strains at the point associated with the x and y axes. Answers: &x = i HE, E = i με.
