If we assume that the resultant force of the two cables is along y-axis as seen on the figure, find the required tension

Post by answerhappygod »

If We Assume That The Resultant Force Of The Two Cables Is Along Y Axis As Seen On The Figure Find The Required Tension 1
If We Assume That The Resultant Force Of The Two Cables Is Along Y Axis As Seen On The Figure Find The Required Tension 1 (55.56 KiB) Viewed 16 times

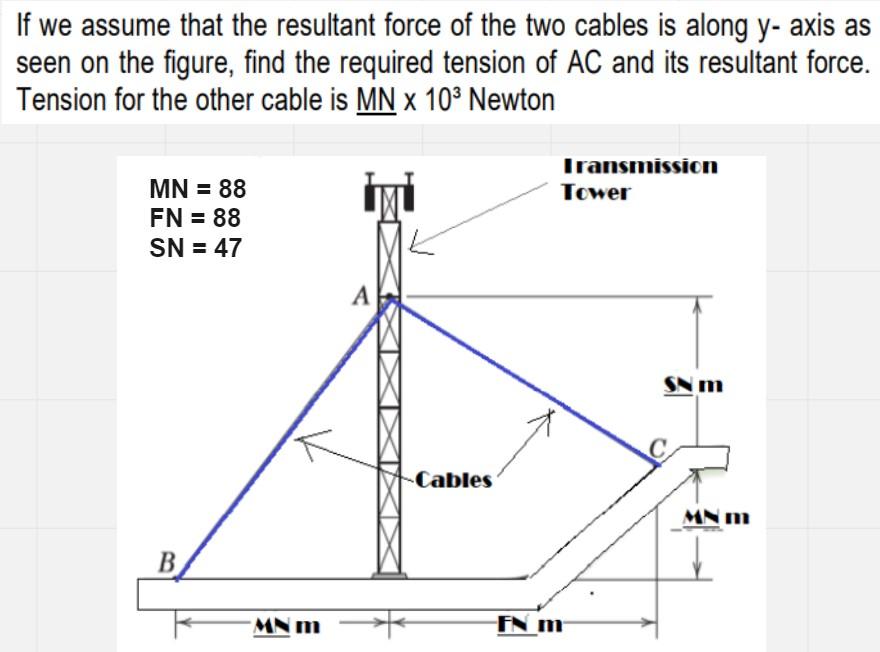

If we assume that the resultant force of the two cables is along y-axis as seen on the figure, find the required tension of AC and its resultant force. Tension for the other cable is MN x 10³ Newton MN = 88 FN = 88 SN = 47 MN m A Cables FN m Transmission Tower SN m MN m
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
