(c) Serviceability limit state is the critical criterion for the design of a square footing on the soil profile shown in

[answerhappygod]

C Serviceability Limit State Is The Critical Criterion For The Design Of A Square Footing On The Soil Profile Shown In 1 (19.34 KiB) Viewed 16 times

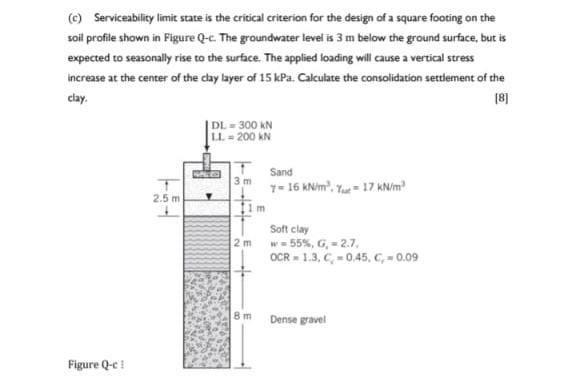

(c) Serviceability limit state is the critical criterion for the design of a square footing on the soil profile shown in Figure Q-c. The groundwater level is 3 m below the ground surface, but is expected to seasonally rise to the surface. The applied loading will cause a vertical stress increase at the center of the clay layer of 15 kPa. Calculate the consolidation settlement of the clay. [8] Figure Q-c! 2.5 m DL= 300 KN LL-200 KN 3 m 2 m 8 m m Sand 7-16 kN/m². - 17 kN/m² Soft clay w=55%, G₂ = 2.7. OCR=1.3, C,-0.45, C, -0.09 Dense gravel
