The tension member shown in the figure is a PL1/2"X8" of ASTM A36 steel. The member is connected to a gusset plate with

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

The tension member shown in the figure is a PL1/2"X8" of ASTM A36 steel. The member is connected to a gusset plate with

Post by answerhappygod »

The Tension Member Shown In The Figure Is A Pl1 2 X8 Of Astm A36 Steel The Member Is Connected To A Gusset Plate With 1
The Tension Member Shown In The Figure Is A Pl1 2 X8 Of Astm A36 Steel The Member Is Connected To A Gusset Plate With 1 (40.57 KiB) Viewed 13 times

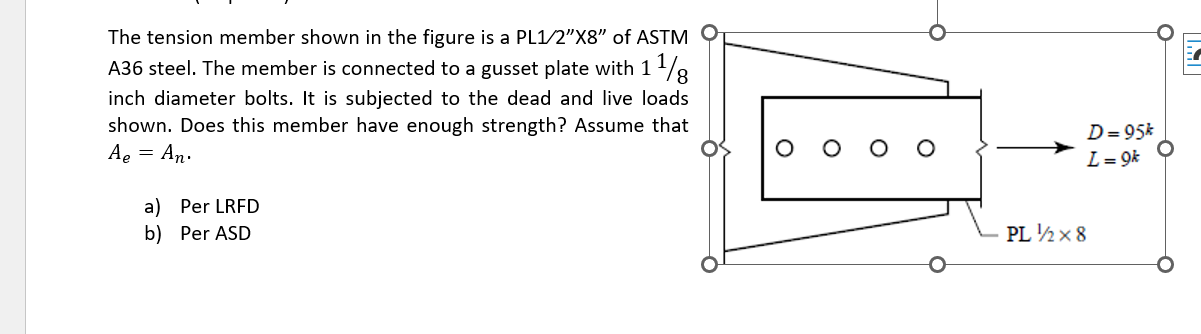

The tension member shown in the figure is a PL1/2"X8" of ASTM A36 steel. The member is connected to a gusset plate with 1 1/8 inch diameter bolts. It is subjected to the dead and live loads shown. Does this member have enough strength? Assume that Ae = An. a) Per LRFD b) Per ASD D=95k L = 9k PL 12 x 8 O
