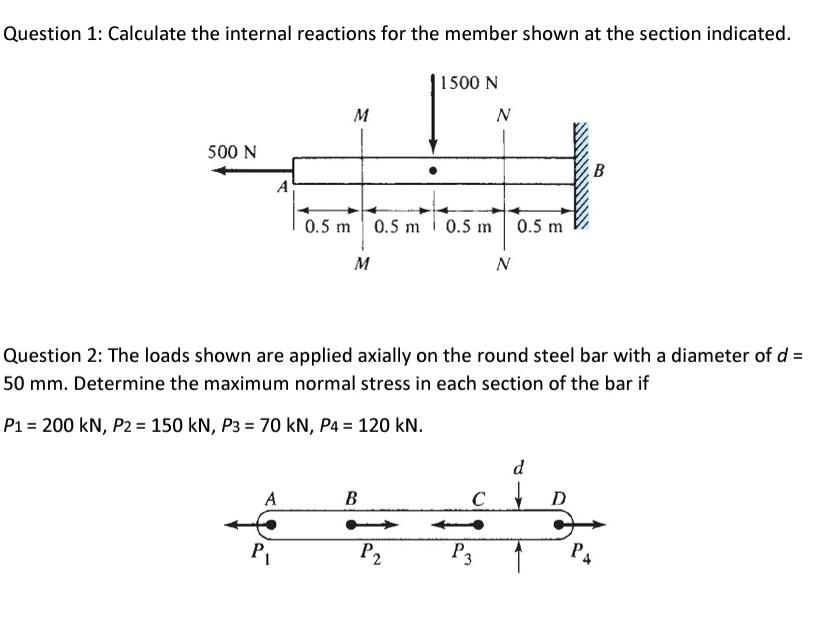

Question 1 Calculate The Internal Reactions For The Member Shown At The Section Indicated 500 N A A M P 0 5 M 0 5 M M 1 (42.19 KiB) Viewed 14 times
I need to just remember how to do these Question 1: Calculate the internal reactions for the member shown at the section indicated. 500 N A A M P₁ 0.5 m 0.5 m M B 1500 N P2 0.5 m Question 2: The loads shown are applied axially on the round steel bar with a diameter of d = 50 mm. Determine the maximum normal stress in each section of the bar if P1 = 200 kN, P2 = 150 kN, P3= 70 kN, P4 = 120 kN. N P3 N 0.5 m B d & D PA
