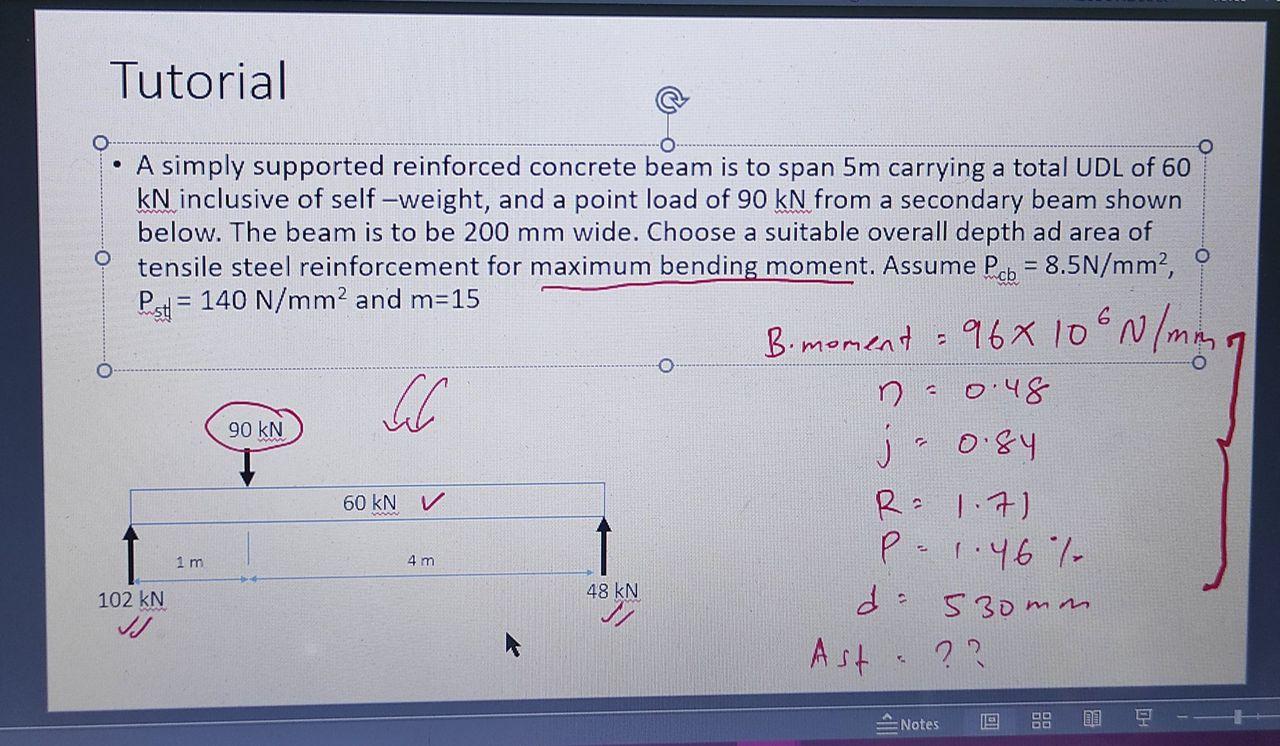

Tutorial • A simply supported reinforced concrete beam is to span 5m carrying a total UDL of 60 KN inclusive of self-weight, and a point load of 90 kN from a secondary beam shown below. The beam is to be 200 mm wide. Choose a suitable overall depth ad area of tensile steel reinforcement for maximum bending moment. Assume Pcb = 8.5N/mm², Pt 140 N/mm² and m=15 = 66 O 1 102 KN 1m 90 kN 60 kN V 4 m 48 KN B.moment = 96x 106 N/mmo 0.48 j = 0.84 R= 1.71 P= 1.46%- d: 530mm. Ast = ?? Notes 99 8.0 4
