1 m 1 m 1 m 10,000 N 1 m Material properties 3 General properties: p = 7800 kg/m³ Elastic properties: E = 200 × 10 Pa V

Post by answerhappygod »

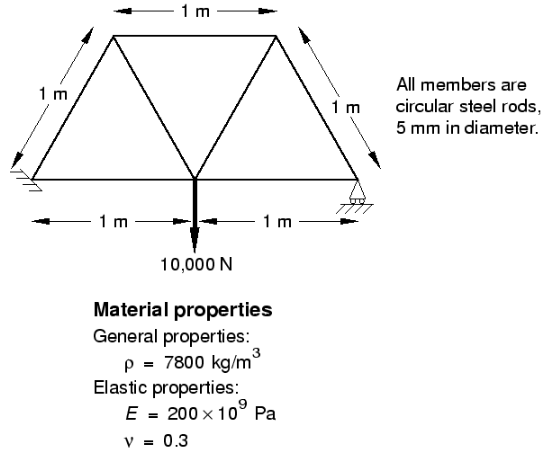

1 M 1 M 1 M 10 000 N 1 M Material Properties 3 General Properties P 7800 Kg M Elastic Properties E 200 10 Pa V 1
1 M 1 M 1 M 10 000 N 1 M Material Properties 3 General Properties P 7800 Kg M Elastic Properties E 200 10 Pa V 1 (36.92 KiB) Viewed 15 times
By manual calculations using finite element method(matrix analysis of structures)
determine the i)stresses in the members
ii)location and magnitude of the maximum displacement
1 m 1 m 1 m 10,000 N 1 m Material properties 3 General properties: p = 7800 kg/m³ Elastic properties: E = 200 × 10 Pa V = 0.3 1 m All members are circular steel rods, 5 mm in diameter.
