The initial compressive A = 9484 mm² lx = 164 x 106 mm4 ly = 23 x 106 mm4 Proportional limit, fs = 290 MPa The x-axis ha

[answerhappygod]

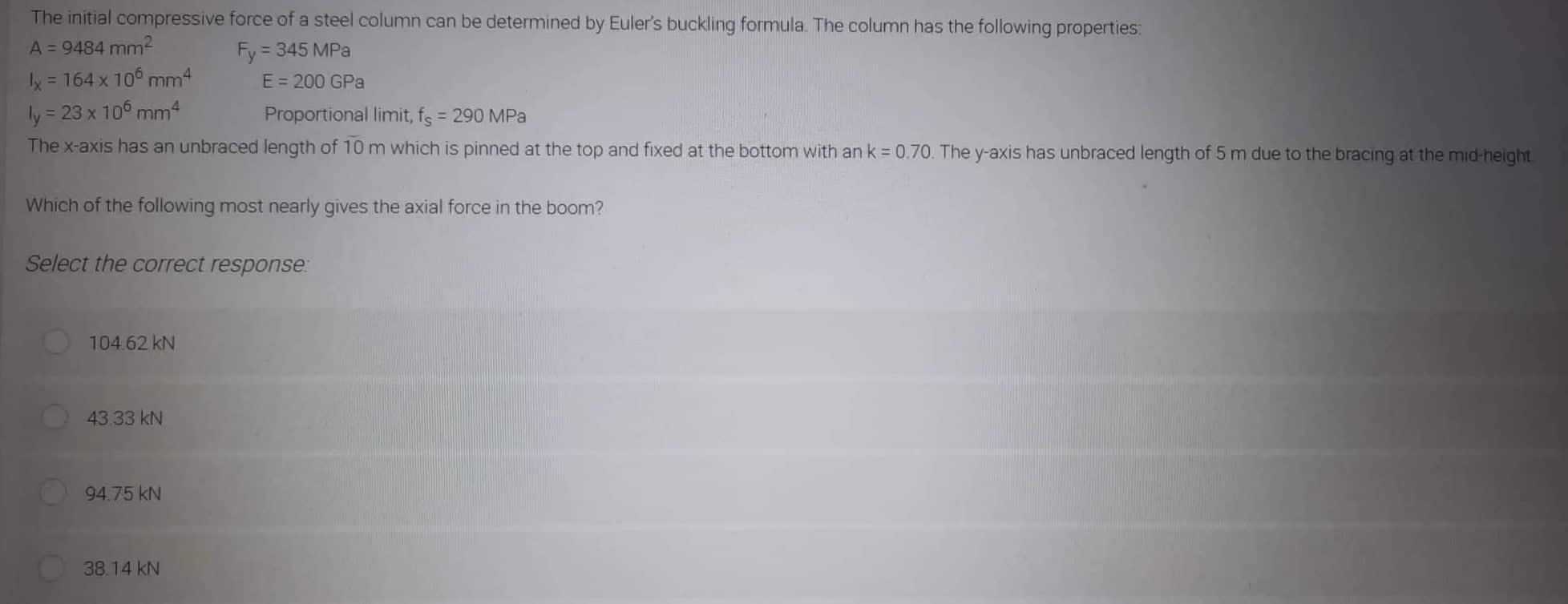

The Initial Compressive A 9484 Mm Lx 164 X 106 Mm4 Ly 23 X 106 Mm4 Proportional Limit Fs 290 Mpa The X Axis Ha 1 (63.6 KiB) Viewed 15 times

The initial compressive A = 9484 mm² lx = 164 x 106 mm4 ly = 23 x 106 mm4 Proportional limit, fs = 290 MPa The x-axis has an unbraced length of 10 m which is pinned at the top and fixed at the bottom with an k = 0.70. The y-axis has unbraced length of 5 m due to the bracing at the mid-height Which of the following most nearly gives the axial force in the boom? Select the correct response: 104.62 KN force of a steel column can be determined by Euler's buckling formula. The column has the following properties: Fy = 3 = 345 MPa E = 200 GPa 43.33 kN 94.75 KN 38.14 kN
