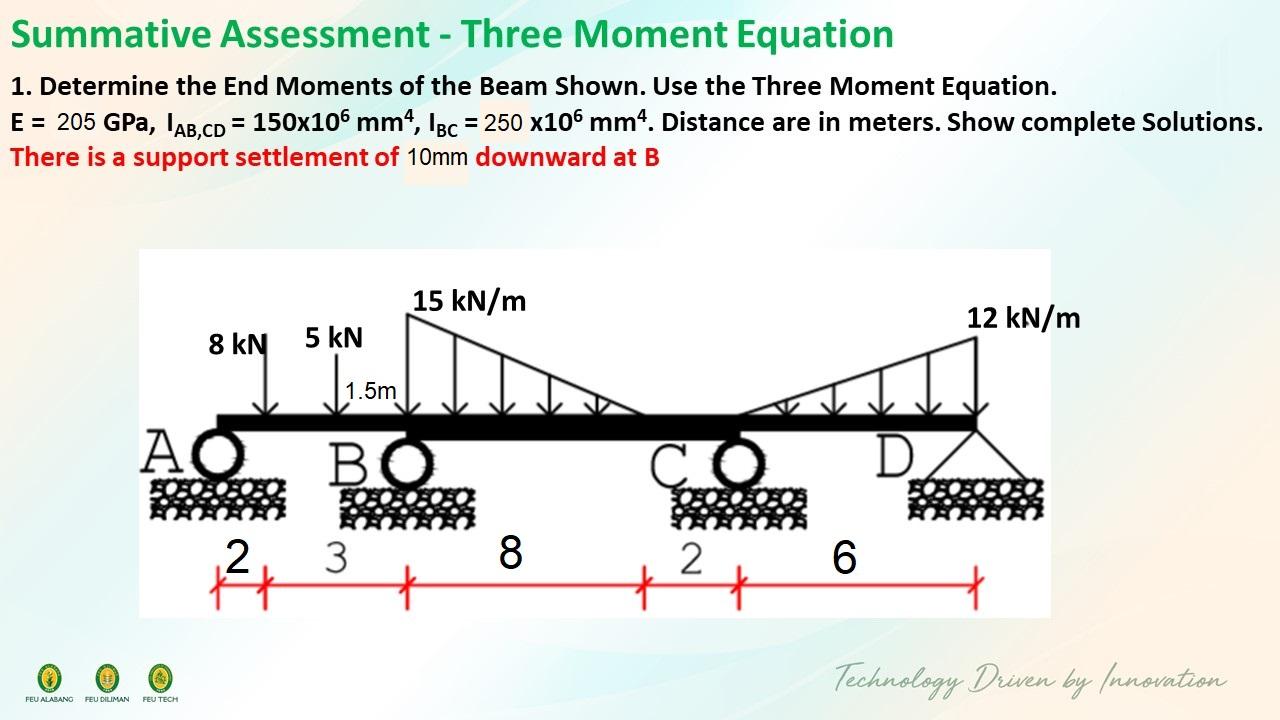

Summative Assessment - Three Moment Equation 1. Determine the End Moments of the Beam Shown. Use the Three Moment Equation. E = 205 GPA, IAB,CD = 150x106 mm4, IBc = 250 x106 mm4. Distance are in meters. Show complete Solutions. There is a support settlement of 10mm downward at B 8 kN 5 kN AO FEU ALABANG FEU DILIMAN FEU TECH 12+ 1.5m 15 kN/m BO FO 3 8 2 6 D D 12 kN/m Technology Driven by Innovation
1. What is the magnitude of the vertical reaction at A, in kN, rounded off to the nearest whole number? Indicate a negative sign if the direction is downwards. Example: -22 2. What is the magnitude of the end moment at B, in kN-m? Indicate the sign if negative. If positive, do not indicate the positive sign. 3. What is the magnitude of the vertical reaction at C, in kN, rounded off to the nearest whole number? Indicate a negative sign if the direction is downwards. Example: -22 4. What is the magnitude of the end moment at C, in kN-m? Indicate the sign if negative. If positive, do not indicate the positive sign.
