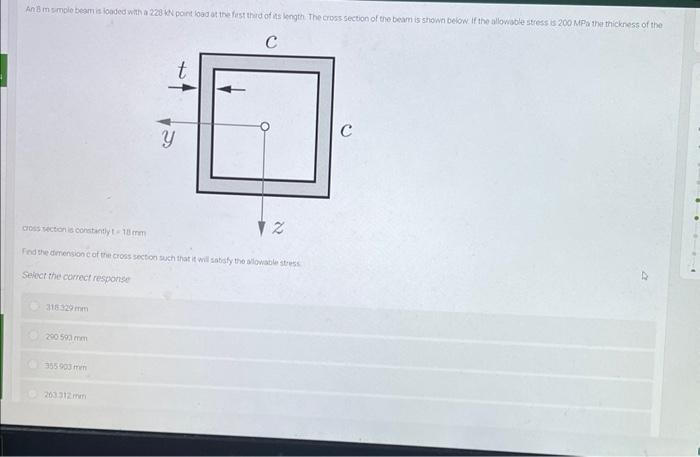

An 8 m simple beam is loaded with a 228 KN point load at the first third of its length The cross section of the beam is shown below. If the allowable stress is 200 MPa the thickness of the C 318.329 mm 290 590 mm cross section is constantly t-18 mm Find the dimension c of the cross section such that it will satisfy the allowable stress Select the correct response 355-903 mm t 263312mm Y 12 C
