A structure is to be built as shown supporting a uniform load of 18 kN/m. The location for the supports at A and B has b

Post by answerhappygod »

A Structure Is To Be Built As Shown Supporting A Uniform Load Of 18 Kn M The Location For The Supports At A And B Has B 1
A Structure Is To Be Built As Shown Supporting A Uniform Load Of 18 Kn M The Location For The Supports At A And B Has B 1 (23.01 KiB) Viewed 16 times

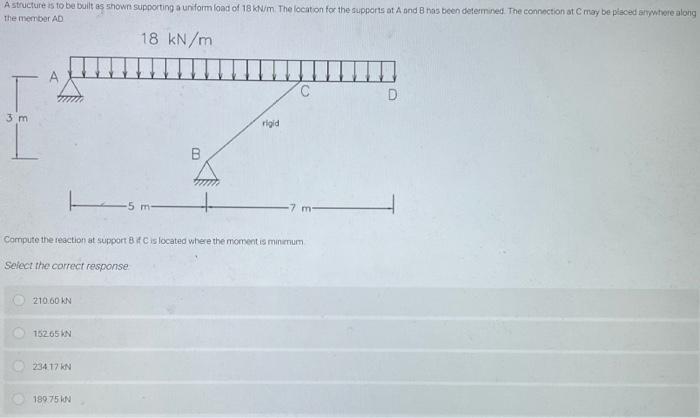

A structure is to be built as shown supporting a uniform load of 18 kN/m. The location for the supports at A and B has been determined. The connection at C may be placed anywhere along the member AD 18 kN/m 3 m A 210.60 KN 152.65 KN 234 17 KN 5 m- Compute the reaction at support Bit C is located where the moment is minimum Select the correct response 189 75 KN rigid G -7 m- D
