Required information The manometer fluid in the figure given below is mercury where D = 5.5 in and h = 2 in. h Estimate

Post by answerhappygod »

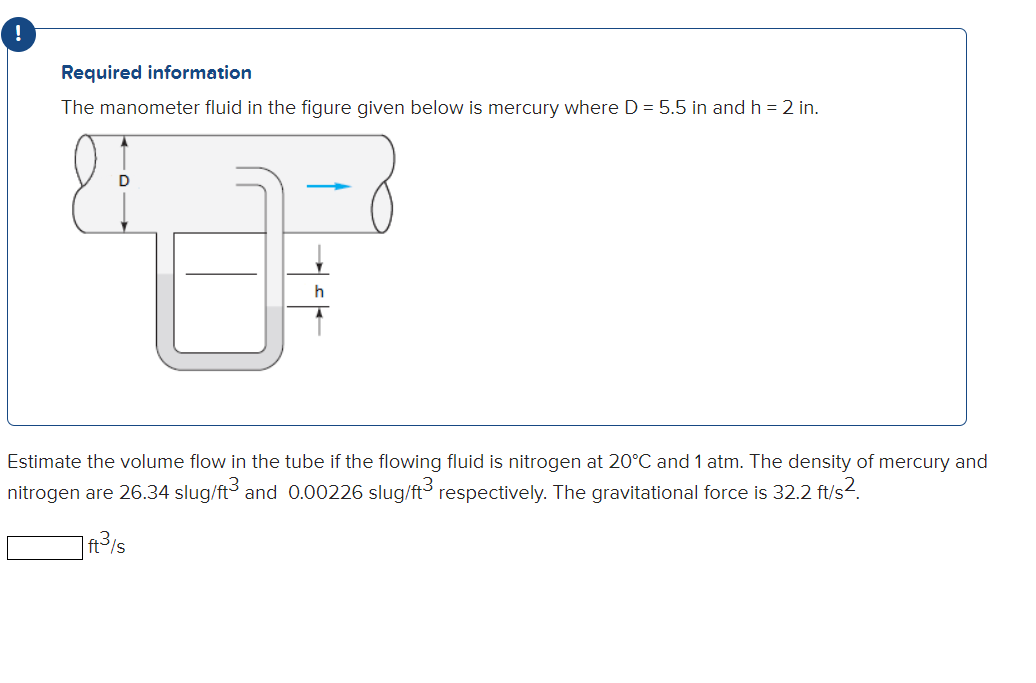

Required Information The Manometer Fluid In The Figure Given Below Is Mercury Where D 5 5 In And H 2 In H Estimate 1
Required Information The Manometer Fluid In The Figure Given Below Is Mercury Where D 5 5 In And H 2 In H Estimate 1 (32.86 KiB) Viewed 17 times
Required information The manometer fluid in the figure given below is mercury where D = 5.5 in and h = 2 in. h Estimate the volume flow in the tube if the flowing fluid is nitrogen at 20°C and 1 atm. The density of mercury and nitrogen are 26.34 slug/ft³ and 0.00226 slug/ft³ respectively. The gravitational force is 32.2 ft/s². ft³/s
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
