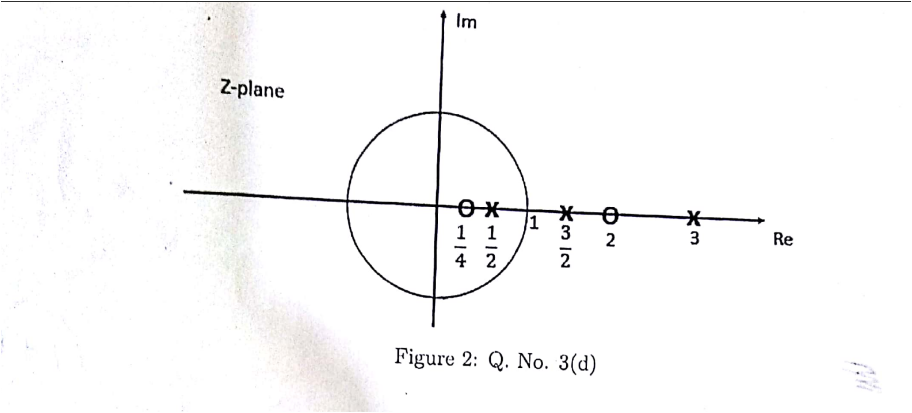

Consider the Z-transformation of the following figurecorresponding to a system function H(z)
i) Mention all the possible ROC
ii) For each ROC comment on Causality, Anti-Causality,Non-Causality and Stability
iii) Write expression of Causal- Stable,Anti-Causal-Stable and Non-Causal-Stable.

Consider The Z Transformation Of The Following Figure Corresponding To A System Function H Z I Mention All The Possib 1 (133.59 KiB) Viewed 16 times

Z-plane Im @T * 1 * 1 1 2 3 Re 4 2 X312 Figure 2: Q. No. 3 (d )
