Task 1. (Criteria: P1) You have been asked to describe the selection criteria for 3 different PLC applications. To do th

[answerhappygod]

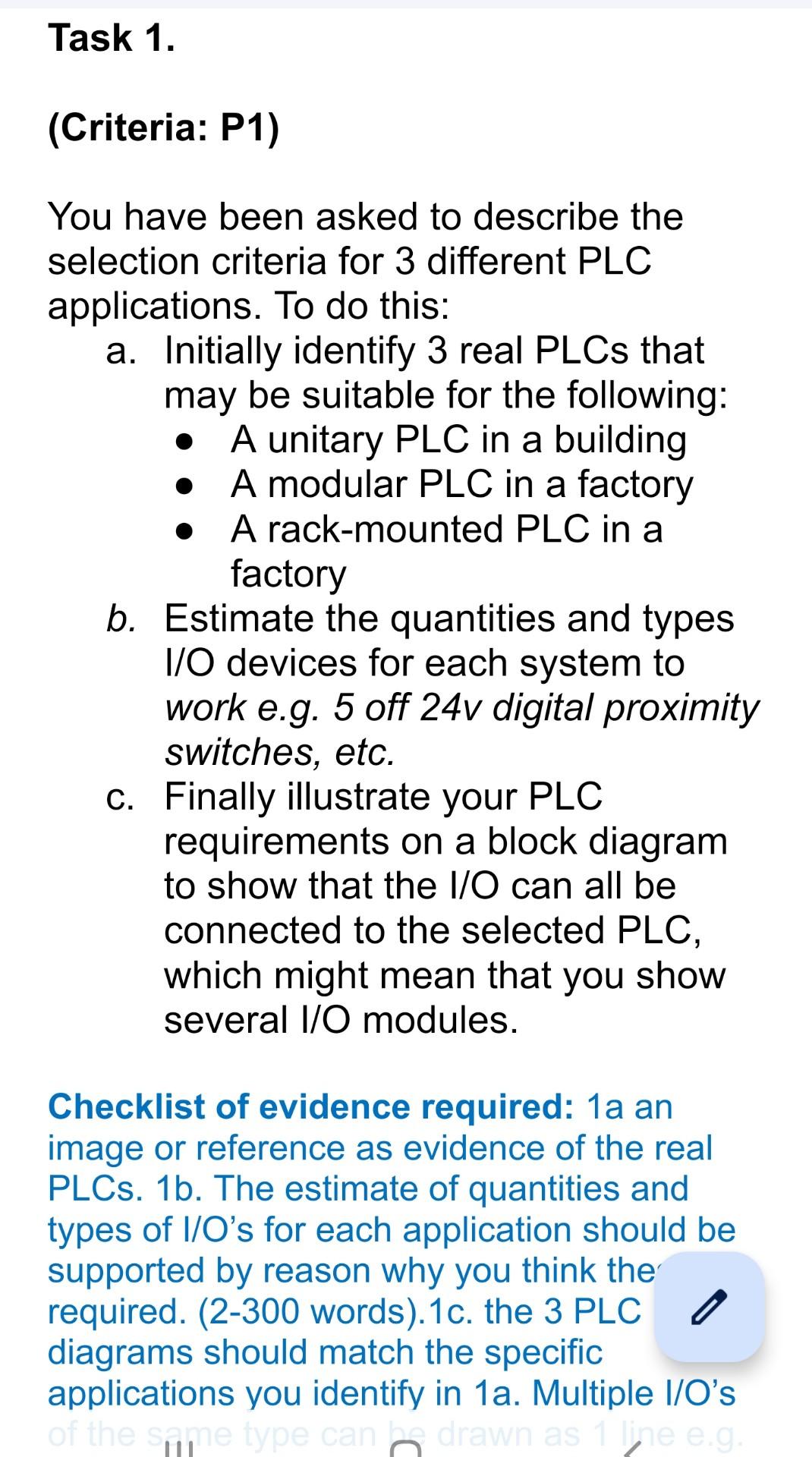

Task 1 Criteria P1 You Have Been Asked To Describe The Selection Criteria For 3 Different Plc Applications To Do Th 1 (256.37 KiB) Viewed 19 times

Task 1. (Criteria: P1) You have been asked to describe the selection criteria for 3 different PLC applications. To do this: a. Initially identify 3 real PLCs that may be suitable for the following: A unitary PLC in a building A modular PLC in a factory A rack-mounted PLC in a factory b. Estimate the quantities and types I/O devices for each system to work e.g. 5 off 24v digital proximity switches, etc. c. Finally illustrate your PLC requirements on a block diagram to show that the I/O can all be connected to the selected PLC, which might mean that you show several I/O modules. Checklist of evidence required: 1a an image or reference as evidence of the real PLCs. 1b. The estimate of quantities and types of I/O's for each application should be supported by reason why you think the required. (2-300 words). 1c. the 3 PLC / diagrams should match the specific applications you identify in 1a. Multiple I/O's of the same type can he drawn as 1 line e.g.
