Consider the circuit shown in the figure below. Suppose that R₁ -50, R₂-13 and R. - 15. = Part A 11- Determine the mesh

Post by answerhappygod »

Consider The Circuit Shown In The Figure Below Suppose That R 50 R 13 And R 15 Part A 11 Determine The Mesh 1

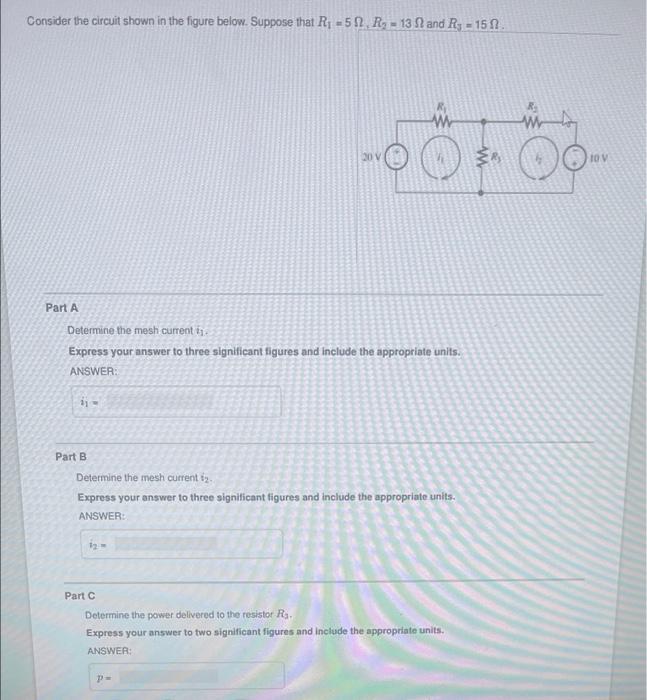

Consider The Circuit Shown In The Figure Below Suppose That R 50 R 13 And R 15 Part A 11 Determine The Mesh 1 (62.51 KiB) Viewed 23 times
Consider the circuit shown in the figure below. Suppose that R₁ -50, R₂-13 and R. - 15. = Part A 11- Determine the mesh current is. Express your answer to three significant figures and include the appropriate units. ANSWER: Part B. -60-00- R₂ Part C 20 V Determine the mesh current 2. Express your answer to three significant figures and include the appropriate units. ANSWER: P- Determine the power delivered to the resistor Rs. Express your answer to two significant figures and include the appropriate units. ANSWER: 10 V
