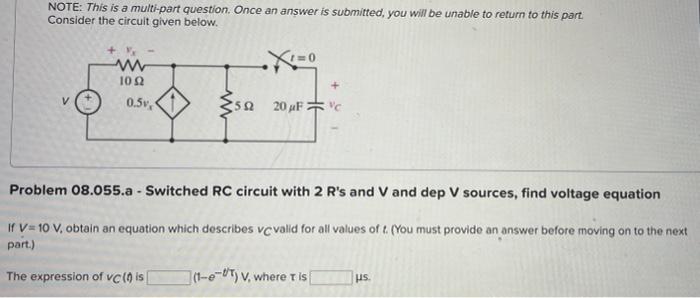

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Consider the circuit given below. www 1092 0.5v, X=0 F 592 20 μF c Problem 08.055.a - Switched RC circuit with 2 R's and V and dep V sources, find voltage equation If V 10 V, obtain an equation which describes vc valid for all values of t. (You must provide an answer before moving on to the next part.) The expression of vc (0) is (1-e-T) V, where T is us.

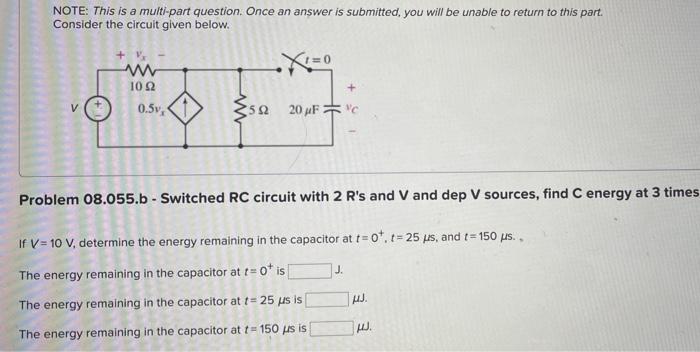

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Consider the circuit given below. ww 10 2 0.5v X1=0 52 20μF="C Ω Problem 08.055.b - Switched RC circuit with 2 R's and V and dep V sources, find C energy at 3 times If V=10 V, determine the energy remaining in the capacitor at t=0*. t= 25 us, and t= 150 us.. The energy remaining in the capacitor at t=0* is The energy remaining in the capacitor at t= 25 us is The energy remaining in the capacitor at t= 150 us is J. HJ. HJ.
