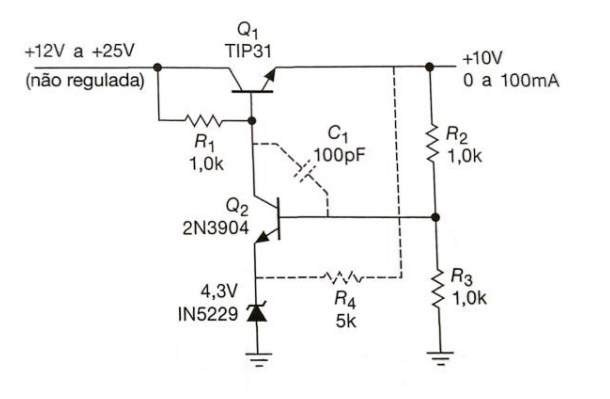

Voltage regulator with Zener and TBJ: Describe the workingprinciple and function of each component illustrated in the figurebelow.
(+12V to +25V Not regulated source)
Voltage Regulator With Zener And Tbj Describe The Working Principle And Function Of Each Component Illustrated In The F 1
Voltage Regulator With Zener And Tbj Describe The Working Principle And Function Of Each Component Illustrated In The F 1 (89.04 KiB) Viewed 25 times
+12V a +25V (não regulada) R₁ 1,0k Q₁ TIP31 Q₂ 2N3904 4,3V IN5229 C₁ 100pF R4 5k +10V 0 a 100mA R₂ 1,0k R3 1,0k
