1) Parameters of a 210 km long symmetrical power transmission line are A=0.96720.034°, It is given as B=117.19/88.98°N.

[answerhappygod]

1 Parameters Of A 210 Km Long Symmetrical Power Transmission Line Are A 0 96720 034 It Is Given As B 117 19 88 98 N 1 (60.33 KiB) Viewed 21 times

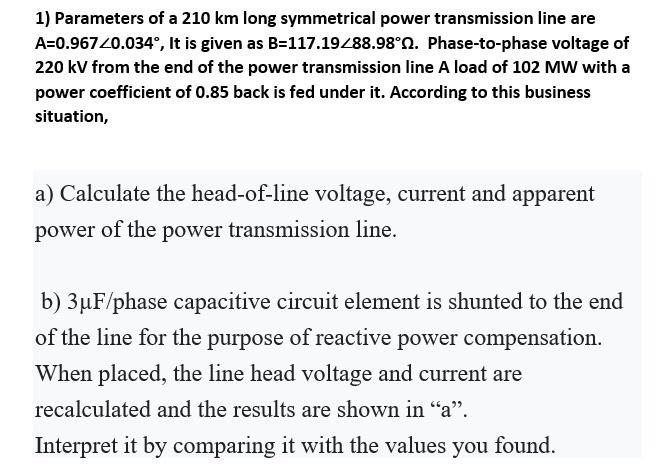

1) Parameters of a 210 km long symmetrical power transmission line are A=0.96720.034°, It is given as B=117.19/88.98°N. Phase-to-phase voltage of 220 kV from the end of the power transmission line A load of 102 MW with a power coefficient of 0.85 back is fed under it. According to this business situation, a) Calculate the head-of-line voltage, current and apparent power of the power transmission line. b) 3μF/phase capacitive circuit element is shunted to the end of the line for the purpose of reactive power compensation. When placed, the line head voltage and current are recalculated and the results are shown in "a". Interpret it by comparing it with the values you found.
