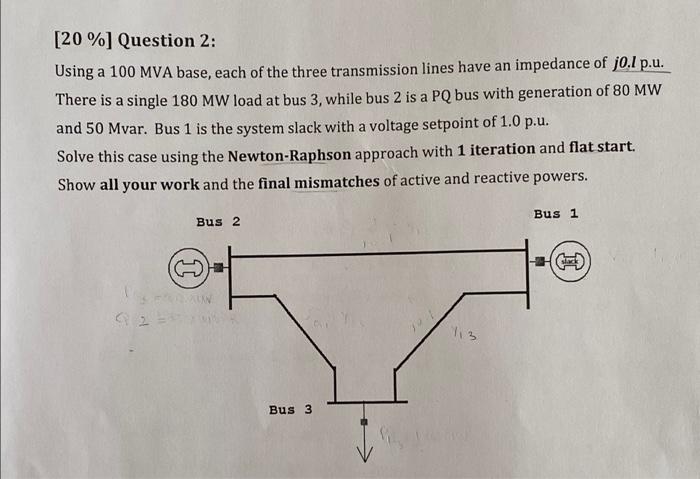

[20%] Question 2: Using a 100 MVA base, each of the three transmission lines have an impedance of j0.1 p.u. There is a single 180 MW load at bus 3, while bus 2 is a PQ bus with generation of 80 MW and 50 Mvar. Bus 1 is the system slack with a voltage setpoint of 1.0 p.u. Solve this case using the Newton-Raphson approach with 1 iteration and flat start. Show all your work and the final mismatches of active and reactive powers. Bus 2 CAN Bus 3 113 Bus 1
1 1 1 Initialize (0) X Calculate J(1) Calculate f(1) Calculate X (¹) Calculate mismatch
