Q2. A simple relay has an airgap of length 1.0 mm and effective cross- sectional area 1000 mm². The magnetizing coil con

Post by answerhappygod »

Q2 A Simple Relay Has An Airgap Of Length 1 0 Mm And Effective Cross Sectional Area 1000 Mm The Magnetizing Coil Con 1
Q2 A Simple Relay Has An Airgap Of Length 1 0 Mm And Effective Cross Sectional Area 1000 Mm The Magnetizing Coil Con 1 (47.71 KiB) Viewed 25 times

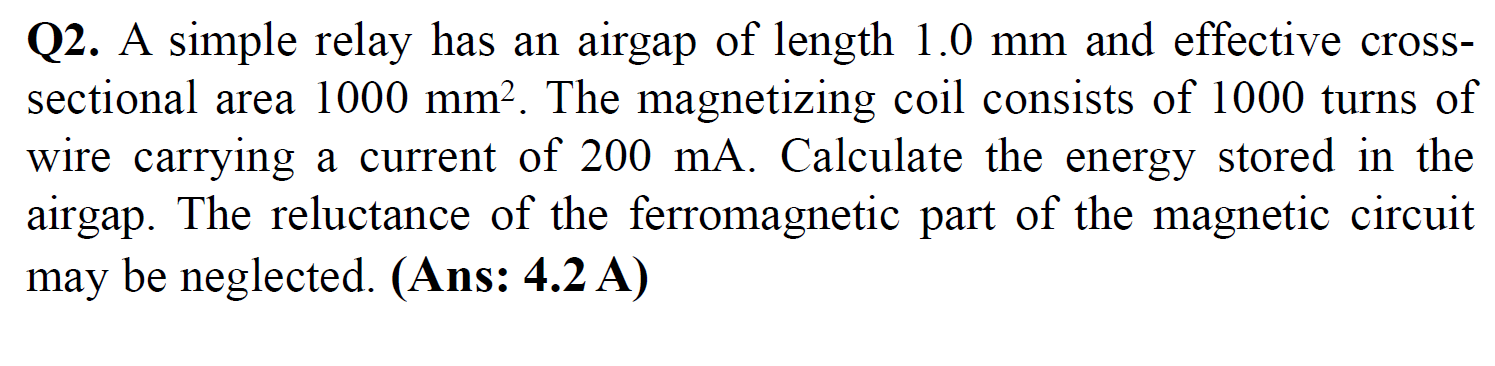

Q2. A simple relay has an airgap of length 1.0 mm and effective cross- sectional area 1000 mm². The magnetizing coil consists of 1000 turns of wire carrying a current of 200 mA. Calculate the energy stored in the airgap. The reluctance of the ferromagnetic part of the magnetic circuit may be neglected. (Ans: 4.2 A)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
