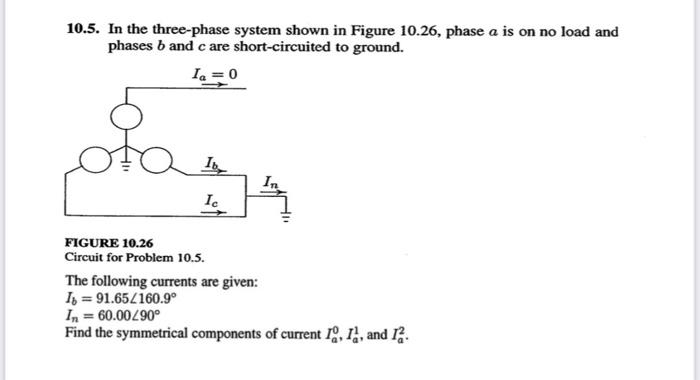

10.5. In the three-phase system shown in Figure 10.26, phase a is on no load and phases b and c are short-circuited to ground. Ia = 0 pays Ib FIGURE 10.26 Circuit for Problem 10.5. The following currents are given: It = 91.65/160.9° In = 60.00/90° Find the symmetrical components of current 10, 12, and 12.
