IV. An electrical system below has an input voltage V(t) and its output is the voltage across R3. Assume X₁ be the volta

Post by answerhappygod »

Iv An Electrical System Below Has An Input Voltage V T And Its Output Is The Voltage Across R3 Assume X Be The Volta 1
Iv An Electrical System Below Has An Input Voltage V T And Its Output Is The Voltage Across R3 Assume X Be The Volta 1 (54.66 KiB) Viewed 23 times
step by step solution please

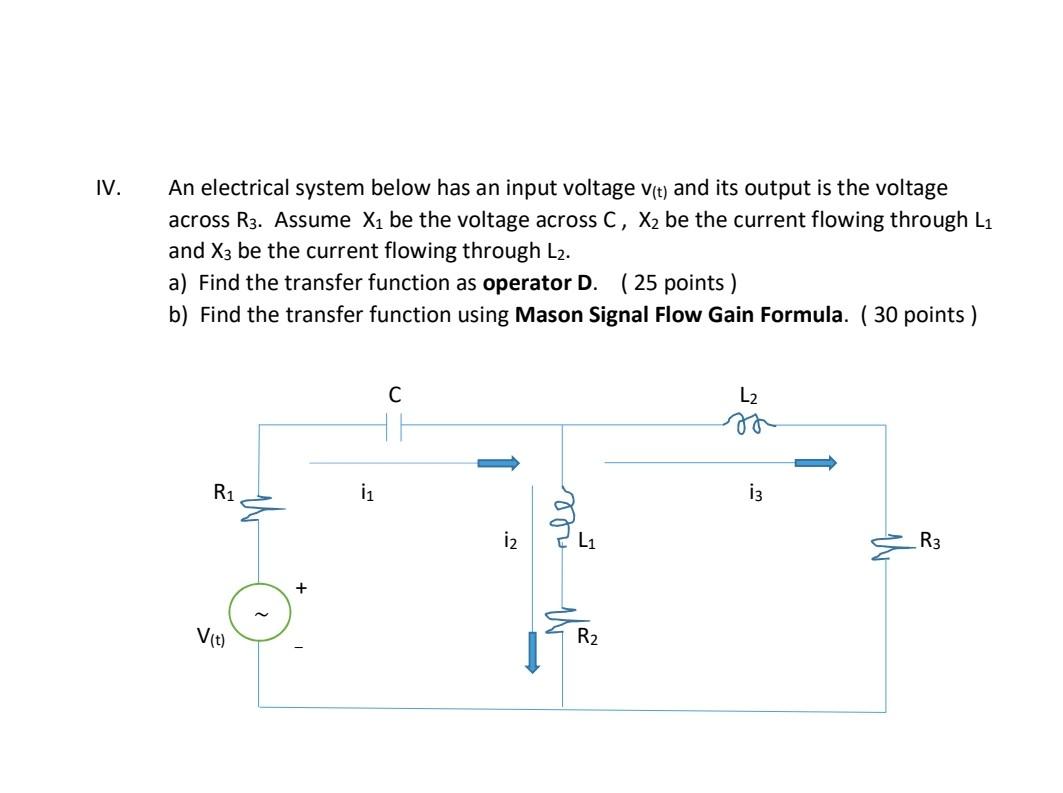

IV. An electrical system below has an input voltage V(t) and its output is the voltage across R3. Assume X₁ be the voltage across C, X₂ be the current flowing through L₁ and X3 be the current flowing through L2. a) Find the transfer function as operator D. (25 points) b) Find the transfer function using Mason Signal Flow Gain Formula. (30 points) R₁ V(t) ¡₁ C HE 5 R₂ L₂ 13 R3
