QUESTION 5 (20 marks) (a) In the circuit in Fig. 9, find the value of Z₁ that will absorb the maximum average (12) power

[answerhappygod]

Question 5 20 Marks A In The Circuit In Fig 9 Find The Value Of Z That Will Absorb The Maximum Average 12 Power 1 (88.51 KiB) Viewed 20 times

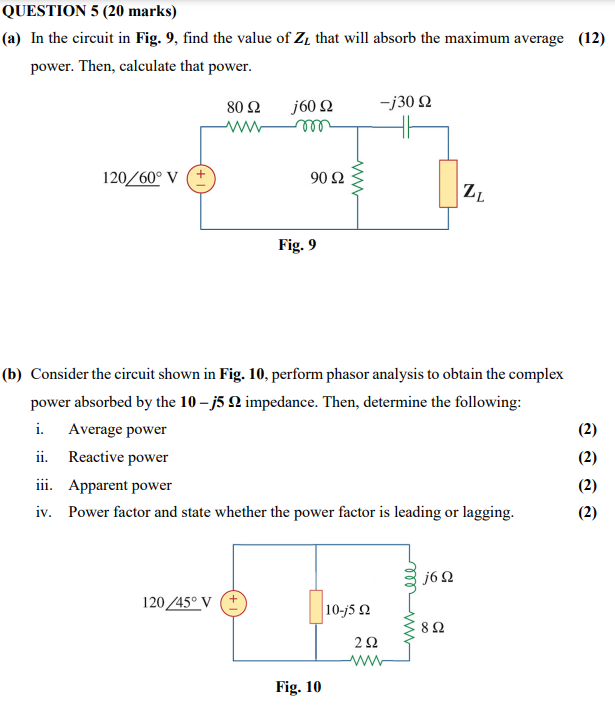

QUESTION 5 (20 marks) (a) In the circuit in Fig. 9, find the value of Z₁ that will absorb the maximum average (12) power. Then, calculate that power. 120/60° V (+ i. Average power ii. Reactive power 80 92 120/45° V j60 2 m 90 92 + Fig. 9 (b) Consider the circuit shown in Fig. 10, perform phasor analysis to obtain the complex power absorbed by the 10-j52 impedance. Then, determine the following: iii. Apparent power iv. Power factor and state whether the power factor is leading or lagging. -j30 Q2 Fig. 10 |10-15 Ω 292 ww ZL j6 Q 892 (2) (2)
