QUESTION 4 (20 marks) (a) Calculate v, in the circuit of Fig. 7 using the superposition theorem. 30 cos 10t V 2 H m 2/30

[answerhappygod]

Question 4 20 Marks A Calculate V In The Circuit Of Fig 7 Using The Superposition Theorem 30 Cos 10t V 2 H M 2 30 1 (63.29 KiB) Viewed 16 times

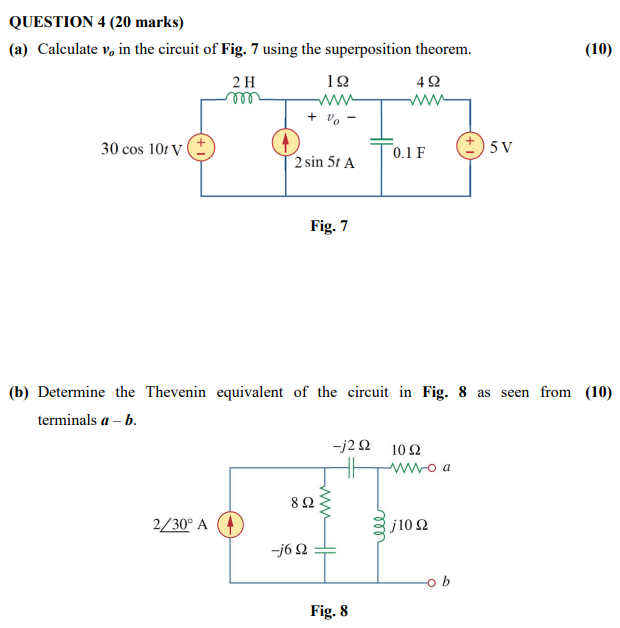

QUESTION 4 (20 marks) (a) Calculate v, in the circuit of Fig. 7 using the superposition theorem. 30 cos 10t V 2 H m 2/30° A + % 192 www 2 sin 5t A Fig. 7 892 -j6 92 (b) Determine the Thevenin equivalent of the circuit in Fig. 8 as seen from (10) terminals a - b. www -j2 Q2 492 www Fig. 8 0.1 F 10 92 www-o a (+) 5V j10 22 (10)
