QUESTION 3 (20 marks) (a) Use the nodal analysis method to find the phasor voltage Vg in the circuit shown in (10) Fig.

[answerhappygod]

Question 3 20 Marks A Use The Nodal Analysis Method To Find The Phasor Voltage Vg In The Circuit Shown In 10 Fig 1 (82.3 KiB) Viewed 12 times

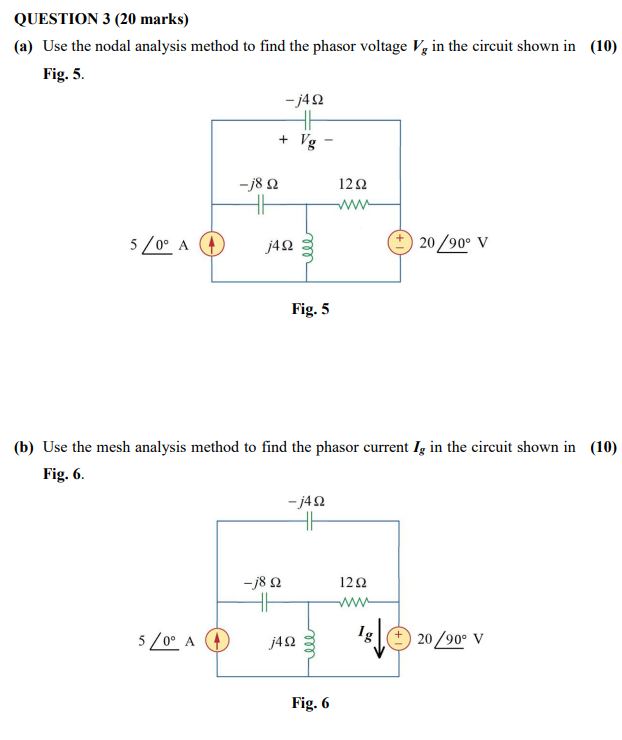

QUESTION 3 (20 marks) (a) Use the nodal analysis method to find the phasor voltage Vg in the circuit shown in (10) Fig. 5. 5/0⁰ A 5/0⁰ A + Vg -j8Q2 HH -j4Q j4Q2 -j8Q2 HH ele Fig. 5 (b) Use the mesh analysis method to find the phasor current Ig in the circuit shown in (10) Fig. 6. -j4Q HH j492 1292 Fig. 6 +20/90° V 12Ω www 20/90° V
