6- Assuming that a certain ASM chart has 3 states, what is the minimum number of flip-flops required to implement it usi

[answerhappygod]

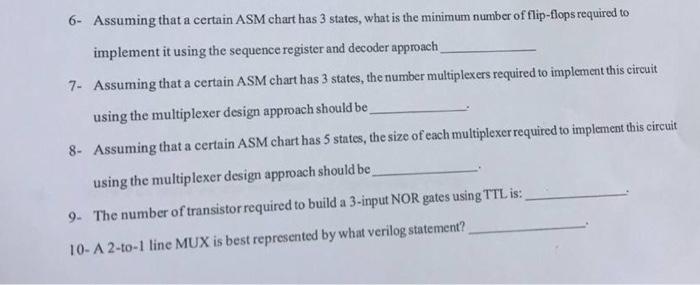

6 Assuming That A Certain Asm Chart Has 3 States What Is The Minimum Number Of Flip Flops Required To Implement It Usi 1 (24.14 KiB) Viewed 20 times

6- Assuming that a certain ASM chart has 3 states, what is the minimum number of flip-flops required to implement it using the sequence register and decoder approach 7- Assuming that a certain ASM chart has 3 states, the number multiplexers required to implement this circuit using the multiplexer design approach should be 8- Assuming that a certain ASM chart has 5 states, the size of each multiplexer required to implement this circuit using the multiplexer design approach should be 9- The number of transistor required to build a 3-input NOR gates using TTL is: 10-A 2-to-1 line MUX is best represented by what verilog statement?
