Given the following data, calculate the face area, spring pressure and balance ratios (external and internal) of a seal,

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Given the following data, calculate the face area, spring pressure and balance ratios (external and internal) of a seal,

Post by answerhappygod »

Given The Following Data Calculate The Face Area Spring Pressure And Balance Ratios External And Internal Of A Seal 1
Given The Following Data Calculate The Face Area Spring Pressure And Balance Ratios External And Internal Of A Seal 1 (67.08 KiB) Viewed 38 times

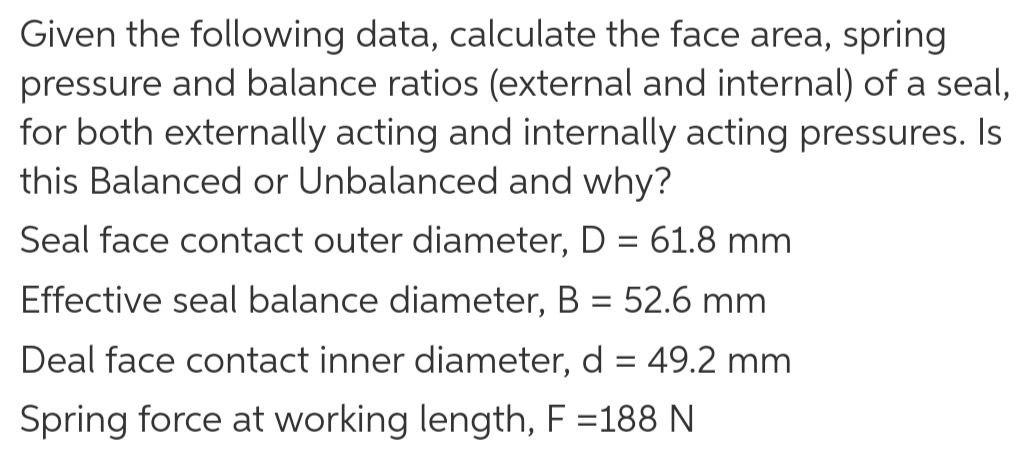

Given the following data, calculate the face area, spring pressure and balance ratios (external and internal) of a seal, for both externally acting and internally acting pressures. Is this Balanced or Unbalanced and why? Seal face contact outer diameter, D = 61.8 mm Effective seal balance diameter, B = 52.6 mm Deal face contact inner diameter, d = 49.2 mm Spring force at working length, F =188 N -
