[2] The link lengths, value of ez and offset for some fourbar slider-crank linkages are defined in the Table below. The

[answerhappygod]

2 The Link Lengths Value Of Ez And Offset For Some Fourbar Slider Crank Linkages Are Defined In The Table Below The 1 (71.73 KiB) Viewed 51 times

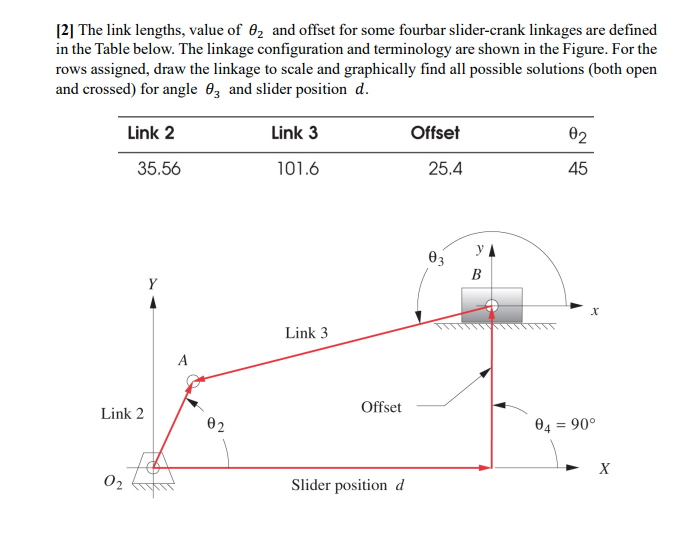

[2] The link lengths, value of ez and offset for some fourbar slider-crank linkages are defined in the Table below. The linkage configuration and terminology are shown in the Figure. For the rows assigned, draw the linkage to scale and graphically find all possible solutions (both open and crossed) for angle ez and slider position d. Link 2 Link 3 Offset 02 35.56 101.6 25.4 45 03 YA B Y Link 3 A Link 2 Offset 02 04 = 90° = X 02 Slider position d
